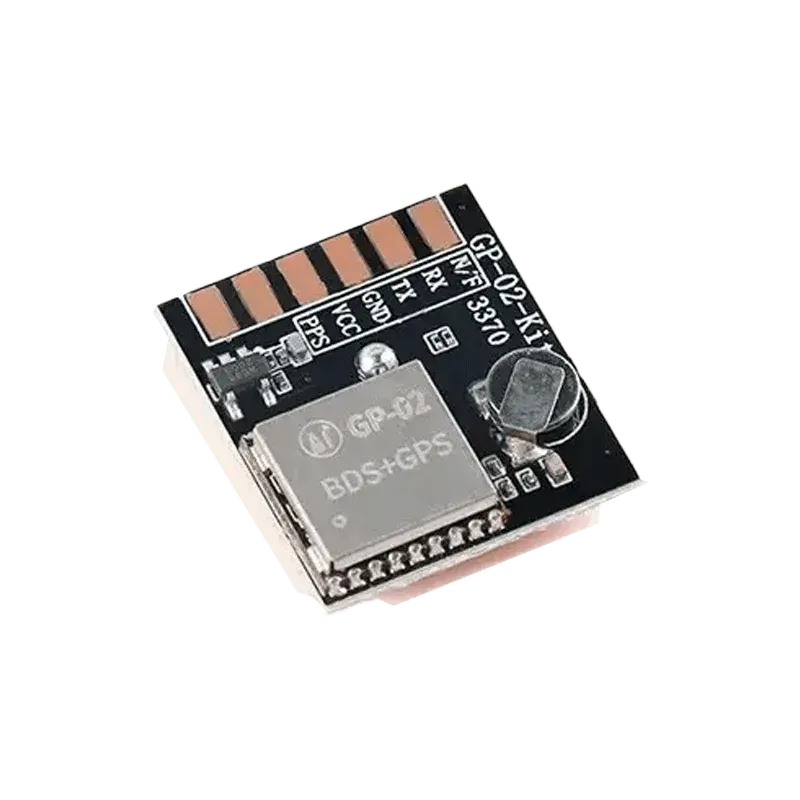

The Precision GPS/GNSS Modules (Ai-Thinker GP-02 and u-blox NEO-M8N) are advanced satellite positioning solutions designed to provide accurate location, velocity, and time data for embedded systems.
The Precision GPS/GNSS Modules (Ai-Thinker GP-02 and u-blox NEO-M8N) are advanced satellite positioning solutions designed to provide accurate location, velocity, and time data for embedded systems. Equipped with high-gain ceramic patch antennas, these modules deliver exceptional signal reception and rapid fix times, even in challenging RF environments.
Supporting multi-constellation GNSS reception (including GPS, GLONASS, BeiDou, and Galileo), these modules achieve sub-2.5 meter positioning accuracy with low power consumption. Data is communicated via standard UART serial interface utilizing standard NMEA-0183 protocols, making integration straightforward with microcontrollers and flight controllers. Onboard EEPROM or Flash memory allows configuration parameters and satellite orbit data to be saved for ultra-fast warm/hot starts.
These modules are widely used in drone flight navigation, vehicle tracking systems, geo-fencing, speedometers, and outdoor IoT telemetry nodes. Operating on 3.3V to 5V power inputs, they are fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, Pixhawk/APM flight controllers, and general custom electronics.
| Satellite Constellation Support | Concurrent GPS, GLONASS, BDS (BeiDou), Galileo, and QZSS reception |
|---|---|
| High Positioning Accuracy | <2.5m CEP horizontal accuracy with high update rate (1Hz to 10Hz) |
| Integrated Ceramic Antenna | High-gain active/passive ceramic patch antenna for optimal signal acquisition |
| Serial Communication Interface | UART TTL interface communicating at default 9600 bps baud rate |
| Operating Voltage | 3.3V to 5.0V DC (integrated LDO voltage regulation) |
| Data Protocol | Standard NMEA-0183 output sentences (GPRMC, GPGGA, GPGSA, etc.) |
| Onboard Battery / EEPROM | Backup battery support and memory chip for fast cold/warm start satellite locking |
| Status LED Indicator | Onboard PPS / Fix indicator LED showing real-time satellite lock status |
What is the operating voltage?
3.3V to 5.0V DC (integrated LDO voltage regulation).
Which interface does it use?
UART TTL interface communicating at default 9600 bps baud rate.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, Raspberry Pi projects.
Can I buy the Ai-Thinker GP-02 Precision GPS/GNSS Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
