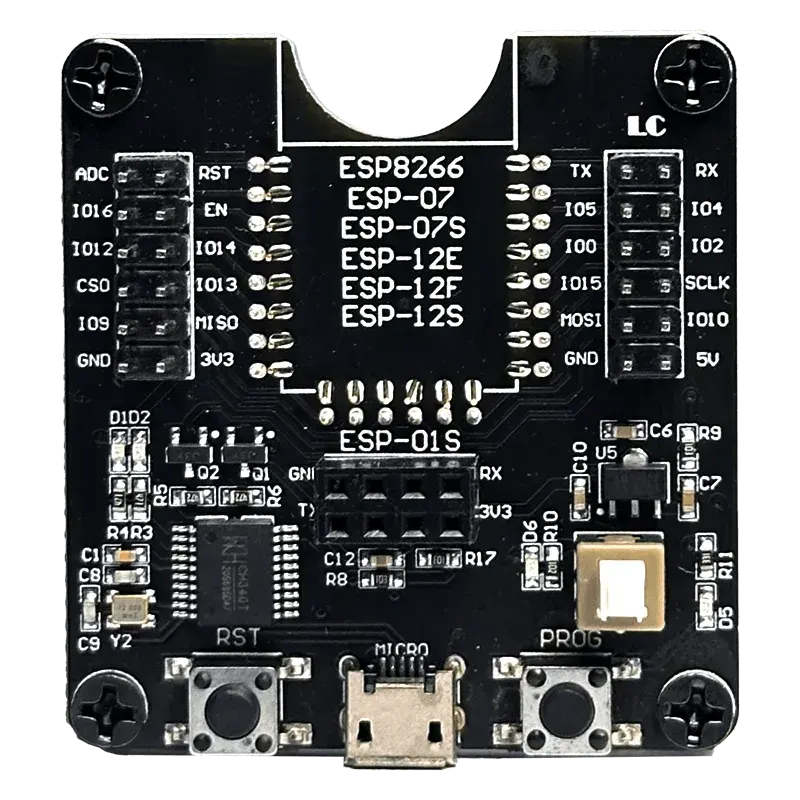

The ESP8266 Programming Jig is a dedicated test fixture and development programmer designed to simplify flashing firmware onto surface-mount ESP8266 Wi-Fi modules. Featuring high-quality spring-loaded pogo pins or standard socket headers, this fixture holds bare ESP8266 boards (such as ESP-12E, ESP-12F, and ESP-07) securely in place without requiring permanent soldering.
Built with an onboard USB-to-UART serial bridge IC (CH340/CP2102) and automatic bootloader control logic, the jig automatically toggles GPIO0 and RESET lines during upload, allowing single-click flashing directly from the Arduino IDE, ESP-IDF, or NodeMCU Flasher. Standard tactile switches for manual Reset and Boot selection are also included for easy debugging.
Equipped with a Micro-USB/Type-C connector and onboard 3.3V voltage regulation, it provides clean, stable power required during high-current Wi-Fi transmission. All GPIO pins are broken out to standard 2.54mm pitch headers, making it fully compatible with ESP8266 modules, Arduino IDE, PlatformIO, and IoT prototyping setups.
| Core USB-UART IC | CH340 / CP2102 USB-to-Serial TTL Bridge |
|---|---|
| Supported Modules | ESP-12E, ESP-12F, ESP-12S, ESP-07, ESP-01 (via socket adapter) |
| Auto-Download Logic | Integrated automatic boot/reset circuit (GPIO0 auto-program mode) |
| Power Supply | Onboard 3.3V LDO voltage regulator for stable Wi-Fi current demands |
| Interface | Micro-USB / Type-C USB port for power and data transfer |
| Pin Breakout | Standard 2.54mm pitch headers bringing out all ESP8266 GPIOs |
| Onboard Controls | Tactile Reset (RST) and Flash (FLASH) buttons |
| Status Indicators | Onboard Power (PWR) and Serial Communication (TX/RX) LEDs |
What is the operating voltage?
Onboard 3.3V LDO voltage regulator for stable Wi-Fi current demands.
Which interface does it use?
Micro-USB / Type-C USB port for power and data transfer.
Is it compatible with Arduino and ESP8266?
Yes. It works with Arduino, ESP8266, NodeMCU projects.
Can I buy the ESP8266 Programming Jig in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
