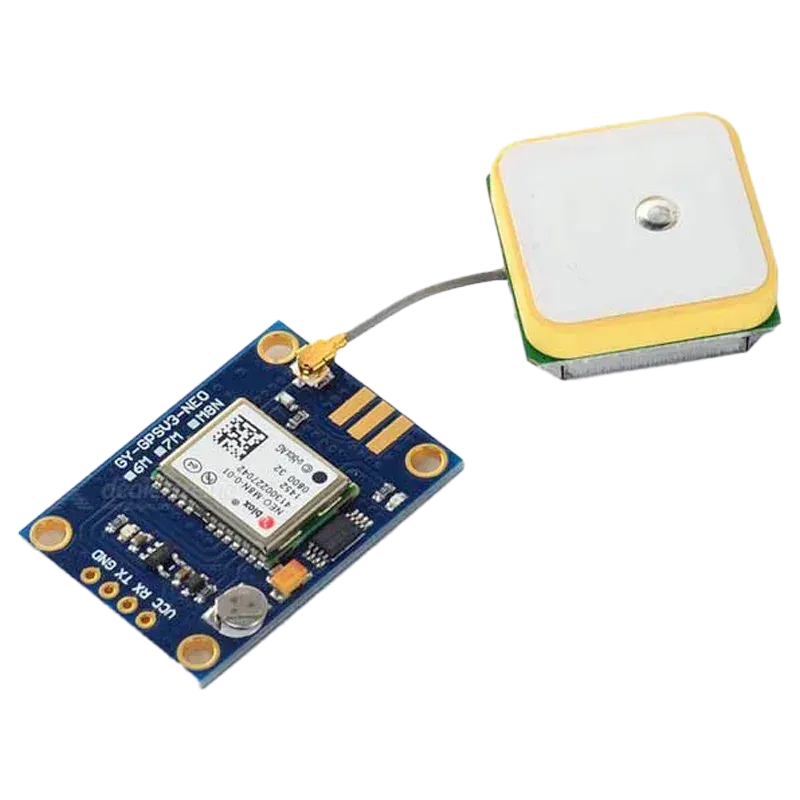

The NEO-M8N GPS Module with Ceramic Antenna is a premium satellite positioning receiver board engineered for applications demanding high accuracy and rapid satellite acquisition.
The NEO-M8N GPS Module with Ceramic Antenna is a premium satellite positioning receiver board engineered for applications demanding high accuracy and rapid satellite acquisition. Powered by the u-blox M8 concurrent GNSS engine, this module simultaneously receives signals from multiple satellite constellations including GPS, GLONASS, BeiDou, and Galileo, delivering superior location accuracy down to 2.0 meters even in urban canyons and dense foliage.
Equipped with a high-gain 25mm imes 25mm active ceramic patch antenna and onboard Low Noise Amplifier (LNA), the NEO-M8N achieves exceptionally fast Cold Start fix times (< 26s) and precise positioning performance. The board features an onboard EEPROM for saving custom configurations and satellite almanac data, along with a rechargeable backup coin cell battery to ensure ultra-fast Hot Starts.
Communicating via standard UART serial interface utilizing standard NMEA-0183 protocols, the module supports update rates up to 10Hz. Operating on 3.3V to 5V power inputs with 3.3V TTL logic lines, it is widely used in Pixhawk/APM flight controllers for drones, vehicle tracking devices, asset monitoring systems, and outdoor robotics. It is fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and custom printed circuit boards (PCBs).
| Core GNSS Engine | u-blox NEO-M8N Concurrent GNSS Receiver Module |
|---|---|
| Multi-Constellation Support | Concurrent GPS / QZSS, GLONASS, BeiDou, and Galileo reception |
| Antenna | High-gain 25mm imes 25mm active ceramic patch antenna with SMA/IPEX connector |
| Horizontal Position Accuracy | 2.0m CEP (Circular Error Probable) |
| Update Rate | Up to 10Hz positioning output rate |
| Operating Voltage | 2.7V to 5.0V DC (onboard LDO voltage regulator) |
| Serial Communication Interface | UART TTL (Default Baud Rate: 9600 bps, configurable up to 115200 bps) |
| Protocol Output | Standard NMEA-0183 and UBX binary protocol |
| Memory & Backup | Onboard EEPROM for parameter storage & rechargeable battery for fast hot start locking |
| Onboard LED | PPS (Pulse Per Second) / Fix status indicator LED |
What is the operating voltage?
2.7V to 5.0V DC (onboard LDO voltage regulator).
Which interface does it use?
UART TTL (Default Baud Rate: 9600 bps, configurable up to 115200 bps).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, Raspberry Pi projects.
