The NEO-6M GPS Module with EEPROM | Best Quality is a widely used satellite positioning and navigation module designed for precision location tracking in embedded systems. 3.3V to 5.0V DC (integrated LDO voltage regulator) · UART TTL output (default baud rate: 9600 bps).
The NEO-6M GPS Module with EEPROM | Best Quality is a widely used satellite positioning and navigation module designed for precision location tracking in embedded systems. Built around the u-blox 6 positioning engine, this module features a 50-channel receiver with high tracking sensitivity down to -161 dBm, providing accurate longitude, latitude, altitude, speed, and time data.
This high-quality variant includes an onboard EEPROM chip to permanently retain custom module configurations (such as custom baud rates and update frequencies set via u-center software) across power cycles. Additionally, a rechargeable coin cell backup battery enables ultra-fast Hot Starts (~1 second) by saving satellite almanac data during main power failure.

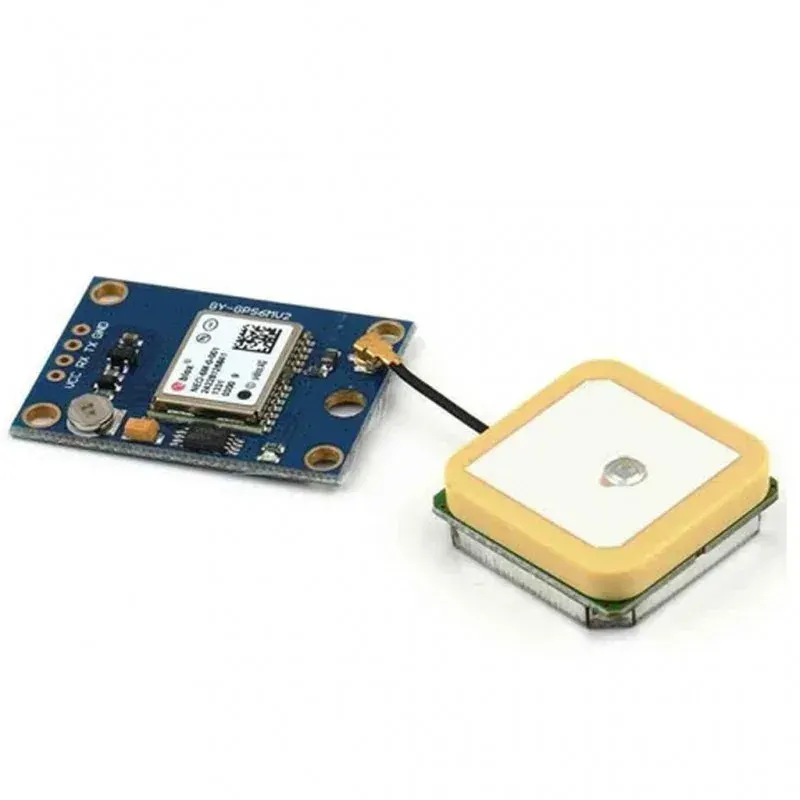

The module comes with a detachable high-gain ceramic patch antenna connected via an IPEX/U.FL connector for enhanced signal acquisition. Communicating over standard UART serial interface (TX, RX) using standard NMEA-0183 protocol, it operates on 3.3V to 5V power supply and is fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, Pixhawk, and DIY electronics.
| Core Engine | High-performance u-blox NEO-6M 50-channel GPS receiver |
|---|---|
| Operating Voltage | 3.3V to 5.0V DC (integrated LDO voltage regulator) |
| Onboard Memory | Built-in EEPROM for saving baud rate, update rate, and configuration settings |
| Backup Battery | Integrated rechargeable coin battery for fast warm/hot start coordinate locks |
| Included Antenna | Detachable high-gain ceramic patch antenna with IPEX connector |
| Serial Interface | UART TTL output (default baud rate: 9600 bps) |
| Tracking Sensitivity | -161 dBm sensitivity for indoor/window testing & outdoor positioning |
| Update Rate | Configurable from 1Hz up to 5Hz position update rate |
| Status Indicator | Onboard LED pulse indicator showing real-time satellite lock status |
What is the operating voltage?
3.3V to 5.0V DC (integrated LDO voltage regulator).
Which interface does it use?
UART TTL output (default baud rate: 9600 bps).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, Raspberry Pi projects.
Can I buy the NEO-6M GPS Module with EPROM Best Qu in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
