The IR LED is a set of 5mm clear infrared light-emitting diodes designed to emit invisible light at a peak wavelength of 940nm. 5mm Standard LED Package.

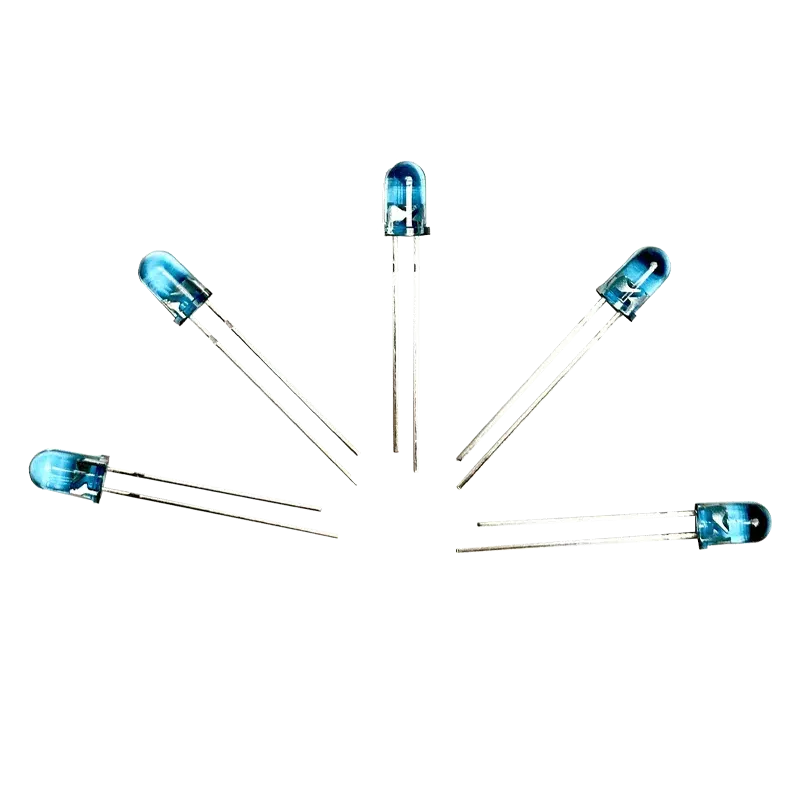

The IR LED is a set of 5mm clear infrared light-emitting diodes designed to emit invisible light at a peak wavelength of 940nm. Housed in a standard 5mm water-clear epoxy package, these IR emitters produce a focused, directional infrared beam ideal for wireless signal transmission, optical line sensing, and proximity detection.
When paired with an IR photodiode or IR receiver LED (such as a 5mm black IR receiver or TSOP module), these transmitter LEDs form an effective optical link for TV/AC remote controllers, object detection systems, optical encoders, and obstacle avoidance sensors.
Featuring standard 2-pin through-hole radial leads, they operate at a forward voltage of 1.2V to 1.6V DC at 20mA (up to 100mA pulsed) and plug directly into breadboards, stripboards, and PCBs. They are fully compatible with Arduino, ESP32, Raspberry Pi, line-following robots, infrared security barriers, and general embedded DIY electronic systems.
| Type | Infrared Light Emitting Diode (IR Transmitter LED) |
|---|---|
| Size / Diameter | 5mm Standard LED Package |
| Lens Color | Water Clear Epoxy |
| Peak Emission Wavelength | 940nm (Standard IR remote control wavelength) |
| Package Quantity | Pack of 5 Pieces |
| Beam / Viewing Angle | ~30° (Focused beam) |
| Terminal Type | 2-Pin Radial Lead (Longer lead = Anode (+), Shorter lead = Cathode (-)) |
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi projects.
Can I buy the IR LED in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
