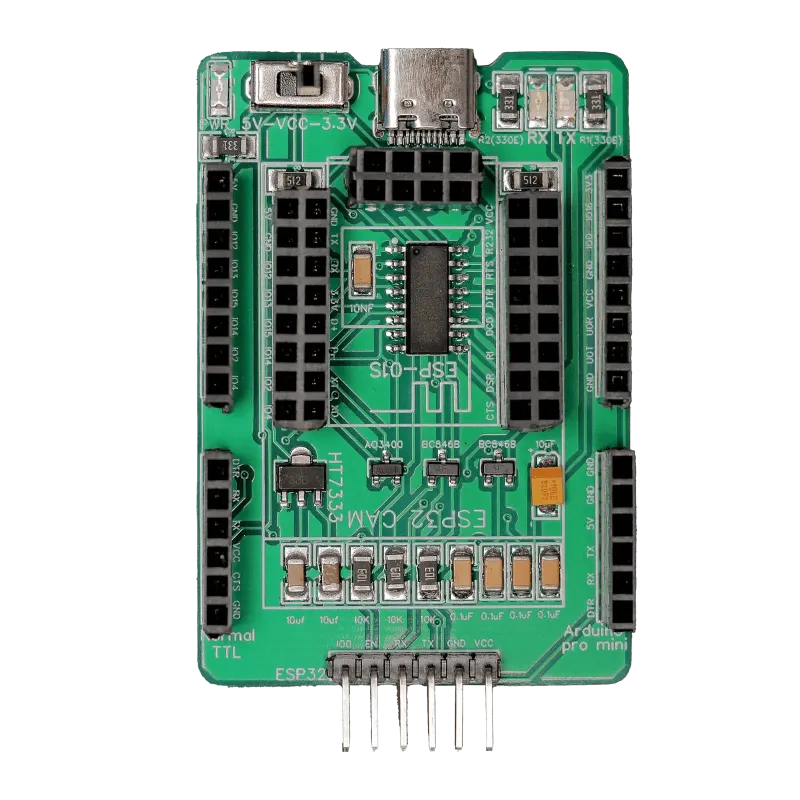

The Universal TTL-Programmer Version-2 With TYPE-C Socket is an upgraded, high-performance serial programming and debugging module designed to provide seamless USB-to-UART TTL communication for a wide array of microcontrollers. Featuring a modern Type-C USB interface, this Version-2 programmer delivers stable power supply and high-speed data transmission required for modern embedded systems development.
Equipped with selectable 3.3V and 5V operating voltage levels via onboard jumpers or switches, the module provides flexible logic compatibility for power-sensitive wireless modules like ESP32 and ESP8266 as well as standard 5V microcontrollers. Integrated automatic boot and reset circuitry (DTR/RTS auto-download logic) allows single-click firmware uploading directly from popular IDEs without requiring manual press of reset or boot buttons.
This universal programmer is widely used for uploading custom firmware, serial debugging, unbricking hardware devices, and interfacing microcontrollers with desktop computers. It features standard 2.54mm pitch header pins (V_CC, GND, TXD, RXD, DTR, RTS) that seamlessly connect to breadboards, perfboards, and prototyping wire assemblies.
| Core USB-UART Bridge | High-reliability USB-to-Serial TTL IC |
|---|---|
| Modern USB Port | Standard Type-C USB female socket for power and data transmission |
| Dual Operating Voltage | Selectable 3.3V / 5V logic output for target circuits |
| Auto-Download Logic | Built-in DTR & RTS auto-reset/boot control for ESP8266 and ESP32 programming |
| High Current Output | Onboard 3.3V LDO regulator supplying clean current for Wi-Fi module spikes |
| Status Indicators | Onboard LEDs for Power (PWR), Transmit (TXD), and Receive (RXD) |
| Multi-Pin Output | Exposes standard 6-pin UART interface (V_CC, GND, TXD, RXD, DTR, RTS) |
| Protection Circuitry | Integrated self-resetting fuse to guard host USB port against over-current |
What is the operating voltage?
Selectable 3.3V / 5V logic output for target circuits.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, STM32 projects.
