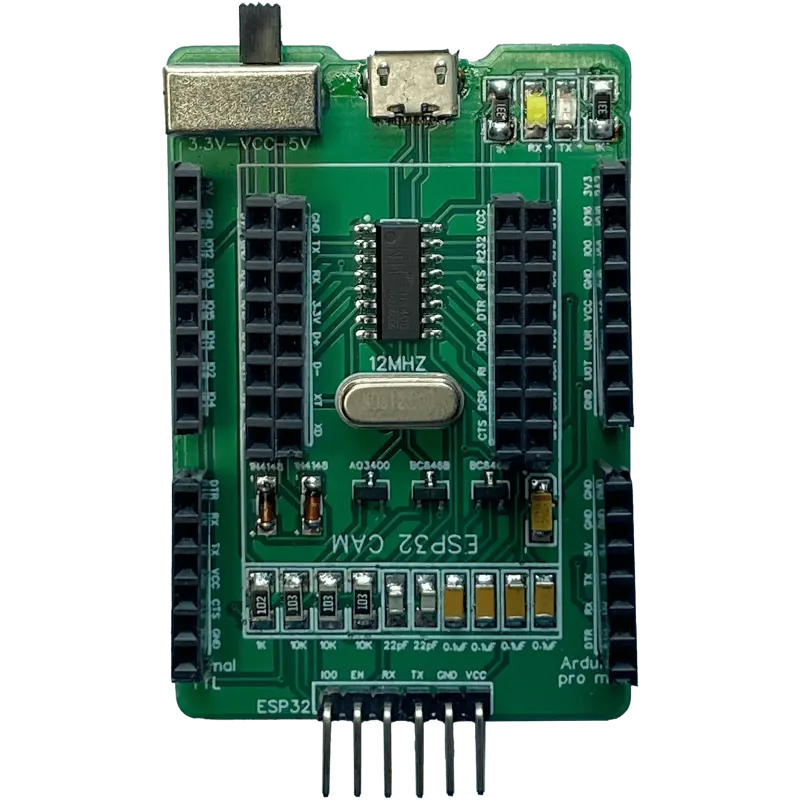

The Universal TTL Auto Programmer is an advanced USB-to-UART serial converter and programmer designed for fast, seamless firmware uploading and serial debugging.
The Universal TTL Auto Programmer is an advanced USB-to-UART serial converter and programmer designed for fast, seamless firmware uploading and serial debugging. Built around a high-performance USB-to-Serial bridge IC, this module features integrated automatic download circuitry (DTR and RTS auto-reset/boot logic) that automatically triggers the program bootloader mode on target wireless chips—eliminating the need to manually press hardware boot or reset buttons during firmware flashing.
Equipped with selectable 3.3V and 5V operating logic voltage levels, it offers broad compatibility with power-sensitive Wi-Fi and Bluetooth microcontrollers as well as standard 5V boards. Onboard status LEDs (TXD, RXD, PWR) provide real-time visual feedback for power status and active serial communication.
This auto programmer is widely used for uploading custom firmware, unbricking hardware devices, monitoring serial telemetry data, and debugging embedded code via PC terminal software. It features standard 2.54mm pitch header pins (V_CC, GND, TXD, RXD, DTR, RTS) that seamlessly connect to breadboards, development shields, and prototyping jumper wire setups.
| Core USB-UART Bridge | High-reliability USB-to-Serial TTL IC |
|---|---|
| Auto-Download Logic | Built-in DTR & RTS auto-reset/boot control for ESP8266 and ESP32 programming |
| Dual Operating Voltage | Selectable 3.3V / 5V logic output for target circuits |
| Onboard Power Supply | Clean 3.3V LDO regulator output supplying current for Wi-Fi module power spikes |
| Communication Interface | Standard 6-pin UART interface (V_CC, GND, TXD, RXD, DTR, RTS) |
| Status Indicators | Onboard LEDs for Power (PWR), Transmit (TXD), and Receive (RXD) |
| Over-Current Protection | Integrated self-resetting fuse to guard host USB ports against over-current |
What is the operating voltage?
Selectable 3.3V / 5V logic output for target circuits.
Which interface does it use?
Standard 6-pin UART interface (V_CC, GND, TXD, RXD, DTR, RTS).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, STM32 projects.
Can I buy the Universal TTL Auto Programmer in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
