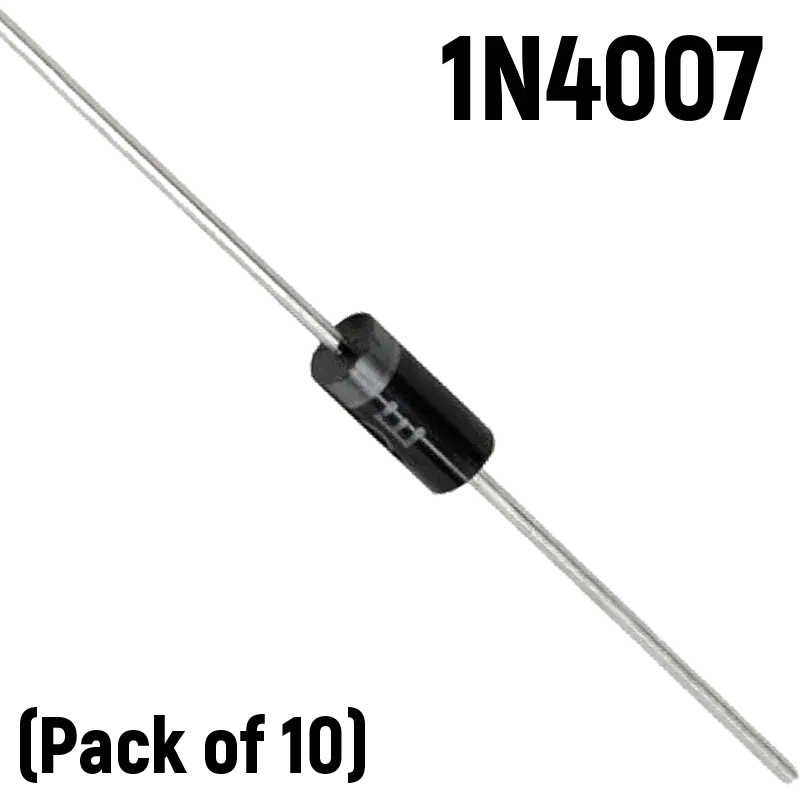

1N4007 Diode (Pack of 10)

The 1N4007 Diode is a set of essential general-purpose silicon rectifier diodes designed for power rectification, circuit protection, and signal routing. Rated for a continuous forward current of 1A and a peak repetitive reverse voltage of up to 1000V, these diodes are a staple in almost every electronics workbench and DIY kit.

Housed in a compact, durable DO-41 axial leaded package, they feature low forward voltage drop, low reverse leakage current, and high surge current capability. They are widely used as flyback (freewheeling) diodes across inductive loads like relays and motors to prevent voltage spikes, as well as reverse voltage protection diodes in power input rails.

They are compatible with breadboards, stripboards, PCBs, Arduino, ESP32, power supply circuits, battery chargers, motor drivers, and general embedded DIY electronic systems.

Specifications

Key Features

• Maximum Peak Repetitive Reverse Voltage (V_{RRM}): 1000V
• Maximum Average Forward Rectified Current (I_{F(AV)}): 1.0A
• Peak Forward Surge Current (I_{FSM}): 30A
• Low forward voltage drop (~1.1V at 1A) and low reverse leakage
• Easy circuit assembly and modification
• Reusable / Durable design
• Compact and convenient for prototyping

Applications

• AC to DC rectification (half-wave & full-wave bridge circuits)
• Reverse polarity protection in power input lines
• Flyback / freewheeling diode protection for relays, solenoids, & DC motors
• Voltage clamping & signal isolation
• Battery charging circuits & power supplies
• DIY electronics & prototyping
• Microcontroller & robotics protection circuits
• Educational & lab experiments

FAQ

Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32 projects.

Can I buy the 1N4007 Diode in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
