W04 Bridge Rectifier

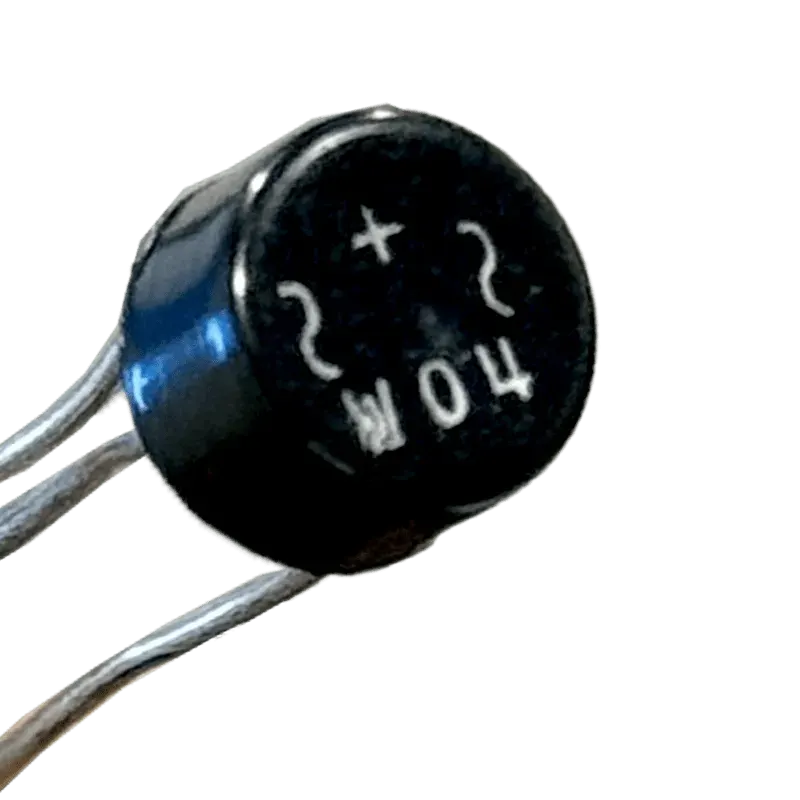

The W04 Bridge Rectifier is a compact 4-pin single-phase full-wave bridge rectifier designed to convert alternating current (AC) into smooth direct current (DC). Rated for a maximum repetitive peak reverse voltage of 400V and a continuous forward current of up to 1.5 Amperes, it is ideal for small to medium power supply applications.

Housed in a durable round WOB glass-passivated molded plastic package, it provides low forward voltage drop, high surge current capability, and reliable heat dissipation. Its lead pins are clearly labeled (+, -, AC, AC) for straightforward circuit integration.

It is compatible with step-down transformer power supplies, AC-DC adapters, battery chargers, LED drivers, motor control power units, and general embedded DIY electronic systems.

Specifications

Key Features

• Maximum Repetitive Peak Reverse Voltage (V_{RRM}): 400V
• Maximum Average Forward Rectified Current (I_{F(AV)}): 1.5A
• Peak Forward Surge Current (I_{FSM}): 50A
• Low reverse leakage current and high reliability
• Easy circuit assembly and modification
• Reusable / Durable design
• Compact and convenient for prototyping

Applications

• AC to DC full-wave rectification circuits
• Linear & switching power supplies (PSU)
• Battery charging circuits
• AC-DC adapters & wall chargers
• LED lighting driver power supply units
• Relay & DC motor power supply circuits
• DIY electronics & prototyping
• Educational & lab experiments

FAQ

Can I buy the W04 Bridge Rectifier in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
