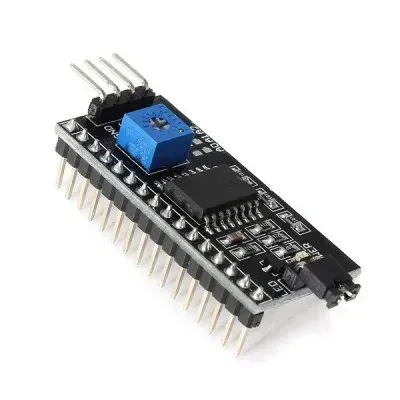

The I2C Module for 16x2 (1602) Character LCD is an interface adapter based on the PCF8574 I2C I/O expander chip, designed to simplify connecting character LCD displays to microcontrollers. 5V DC.
The I2C Module for 16x2 (1602) Character LCD is an interface adapter based on the PCF8574 I2C I/O expander chip, designed to simplify connecting character LCD displays to microcontrollers. Instead of requiring 6 to 11 GPIO pins for parallel data transfer, this module converts the standard parallel LCD interface into a 2-wire I2C communication bus.
It features a built-in potentiometer for adjusting screen contrast, a backlight jumper header, and selectable I2C address pads (default 0x27 or 0x3F). It solder-connects directly onto the back of 16x2 (1602) or 20x4 (2004) character LCD modules.
It is compatible with Arduino, ESP32, Raspberry Pi, STM32, robotics, and general embedded DIY electronic projects.
| Type | LCD I2C Serial Interface Adapter Module |
|---|---|
| Driver IC | PCF8574 / PCF8574T I2C Expander |
| Communication Protocol | I2C / I2C Serial (SDA, SCL) |
| Default I2C Address | 0x27 or 0x3F (Address configurable via A0, A1, A2 jumpers) |
| Operating Voltage | 5V DC |
| Onboard Features | Contrast adjustment potentiometer, backlight enable jumper |
| Compatibility | Fits standard 16x2 (1602) and 20x4 (2004) character LCDs |
What is the operating voltage?
5V DC.
Which interface does it use?
I2C / I2C Serial (SDA, SCL).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi, STM32 projects.
Can I buy the I2C Module for 16*2 Character LCD in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
