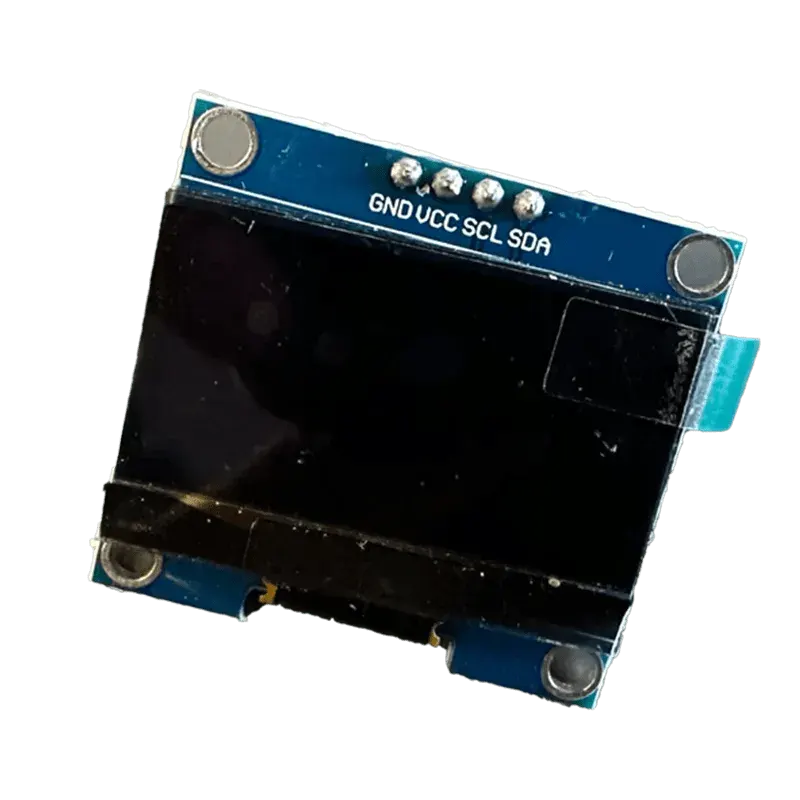

The 1.3In OLED Display Module I2C 128*64 4 Pin is a compact, ultra-sharp graphic display module that produces bright, crisp visuals without requiring a backlight. 1.3 Inch Diagonal · 128 x 64 Pixels · 4-Pin I2C Serial Interface (VCC, GND, SCL, SDA).
The 1.3In OLED Display Module I2C 128*64 4 Pin is a compact, ultra-sharp graphic display module that produces bright, crisp visuals without requiring a backlight. With a high resolution of 128×64 pixels, each individual pixel emits its own light, ensuring high contrast, low power consumption, and wide viewing angles.
It uses a 4-pin I2C communication interface (VCC, GND, SCL, SDA), requiring only 2 signal wires to connect with microcontrollers. Powered by the SH1106 (or SSD1306) driver IC, it easily displays custom text, sensor data, graphics, icons, and UI elements.
It is compatible with Arduino, ESP32, Raspberry Pi, STM32, robotics, wearable tech, and general embedded DIY electronic systems.
| Type | OLED Graphic Display Module |
|---|---|
| Display Size | 1.3 Inch Diagonal |
| Resolution | 128 x 64 Pixels |
| Driver IC | SH1106 / SSD1306 |
| Interface | 4-Pin I2C Serial Interface (VCC, GND, SCL, SDA) |
| Operating Voltage | 3.3V – 5V DC |
| High Contrast | Self-illuminating pixels (No backlight needed) |
| Wide Viewing Angle | >160 degrees |
What is the operating voltage?
3.3V – 5V DC.
Which interface does it use?
4-Pin I2C Serial Interface (VCC, GND, SCL, SDA).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi, STM32 projects.
Can I buy the 1.3In OLED Display Module I2C 128*64 4 Pin in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
