The IP5306 Fully Integrated Power Bank Charger IC is a highly integrated System-on-Chip (SoC) power management solution tailored for single-cell lithium-ion and lithium-polymer battery power bank… 4.5V – 5.5V DC · Up to 2.4A (Adaptive charging).

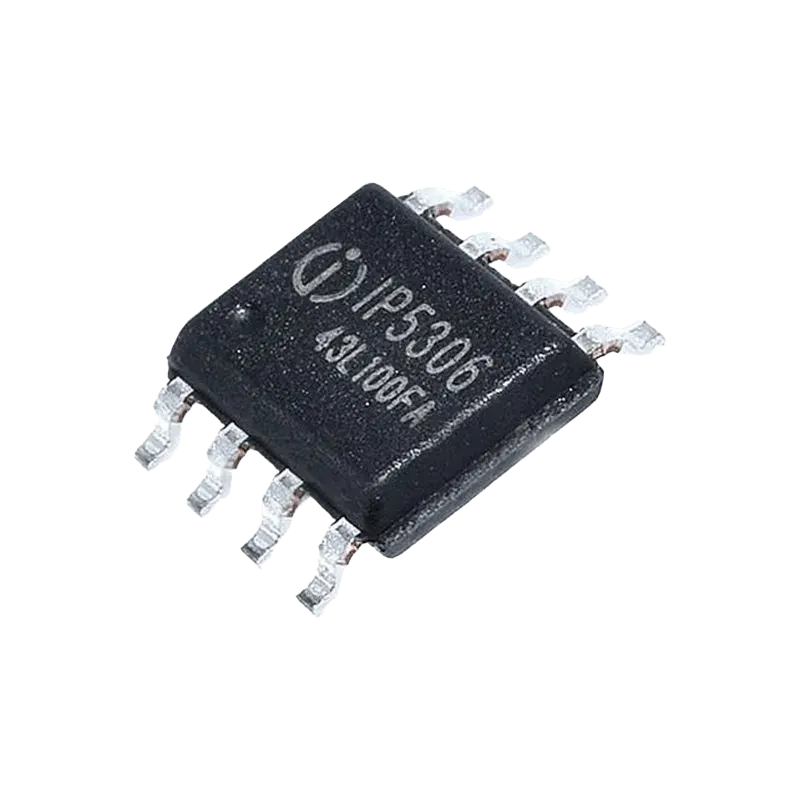

The IP5306 Fully Integrated Power Bank Charger IC is a highly integrated System-on-Chip (SoC) power management solution tailored for single-cell lithium-ion and lithium-polymer battery power bank applications. Combining a switching battery charger, a synchronous boost converter, LED battery level indicators, and power control logic into a single SOP-8 package, it significantly minimizes external component count and circuit design complexity.
Capable of delivering up to 2.4A charge current to the battery and up to 2.1A output current via its synchronous boost converter, it offers high energy efficiency (up to 92%+ boost conversion efficiency). It includes automatic load detection (auto power-on when a device is connected and auto shut-down under light load) along with integrated protection mechanisms against overcharge, over-discharge, overcurrent, short circuit, and overtemperature.
It is ideal for custom power banks, ESP32/Arduino battery power shields, portable IoT node power supplies, handheld devices, and general embedded DIY electronic systems.
| Type | Fully Integrated Power Bank Power Management IC (SoC) |
|---|---|
| Package Type | SOP-8 (Surface Mount) |
| Input Voltage Range | 4.5V – 5.5V DC |
| Charge Current | Up to 2.4A (Adaptive charging) |
| Synchronous Boost Output | Up to 2.1A at 5V DC |
| Efficiency | Up to 92%+ Boost Efficiency |
| Battery Support | Single-cell 3.7V Li-ion / Li-Po batteries (4.2V / 4.35V target option) |
| Battery Level Indication | Supports 1, 2, 3, or 4 LED status indicators |
| Smart Control | Key/button input support & auto load insertion/removal detection |
| Built-in Safety Protections | Over-current, over-voltage, short-circuit, over-temperature, and over-charge/discharge protections |
What is the operating voltage?
4.5V – 5.5V DC.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32 projects.
Can I buy the IP5306 Fully Integrated Power Bank Charger IC in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
