The A3144 Hall Effect Sensor Module is an essential workshop sensor engineered for detecting magnetic fields in electronics prototypes and automation systems. 3.3V to 5V DC compatible with standard microcontroller logic.

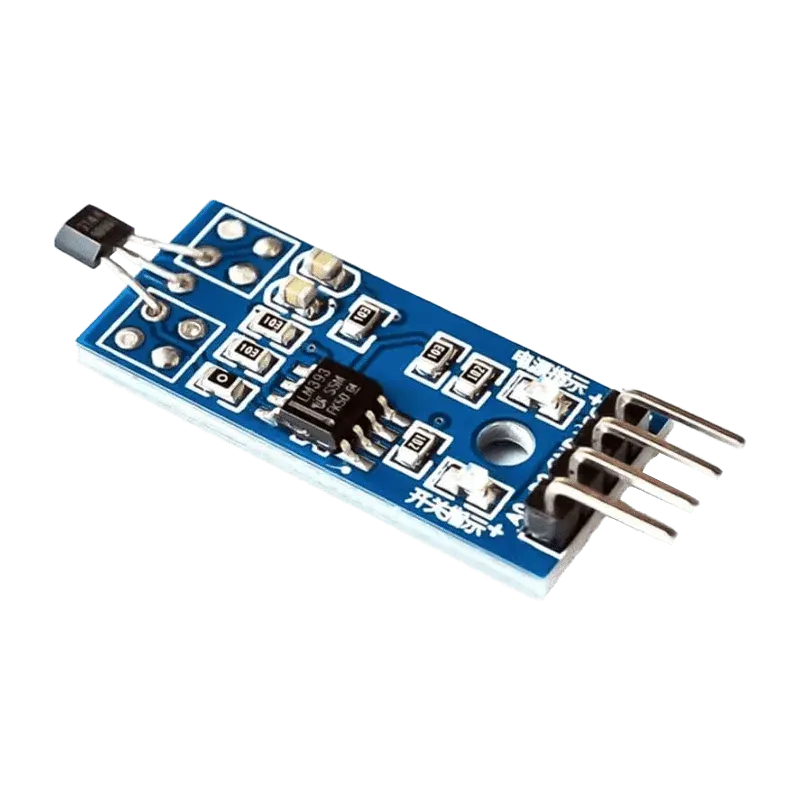

The A3144 Hall Effect Sensor Module is an essential workshop sensor engineered for detecting magnetic fields in electronics prototypes and automation systems. Built around the popular A3144 unipolar Hall-effect switch, it responds to the presence of a magnetic pole (such as a neodymium magnet) by switching its digital output state.
The module integrates an onboard status LED, a filtering capacitor, and a pull-up resistor, providing a clean, stable digital signal (HIGH/LOW) that interfaces directly with microcontrollers like Arduino, ESP32, and Raspberry Pi. It is widely used for non-contact position sensing, speed measurement, and tachometer applications.
| Sensor IC | A3144 unipolar Hall-effect switch sensitive to North and South magnetic poles |
|---|---|
| Output Type | Digital switch output (open collector with onboard pull-up resistor) |
| Operating Voltage | 3.3V to 5V DC compatible with standard microcontroller logic |
| Indicators | Onboard power LED and digital output status LED for visual debugging |
| Board Design | Clean 3-pin breakout format (VCC, GND, DOUT) for easy jumper wire connection |
What is the operating voltage?
3.3V to 5V DC compatible with standard microcontroller logic.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi projects.
Can I buy the A3144 Hall Effect Sensor Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
