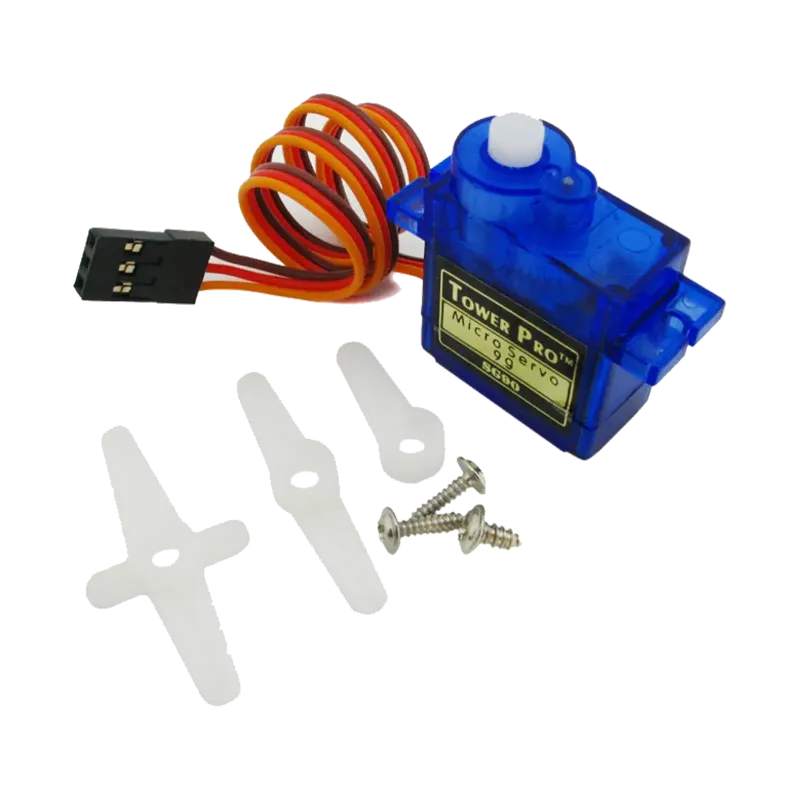

The Tower Pro SG90 Servo - 9 gms Mini/Micro Servo Motor is a widely popular, ultra-lightweight micro servo motor designed for small robotics, RC aircraft, pan-tilt mounts, and automated DIY electronics projects. Built with precision injection-molded plastic/nylon internal gears, it provides smooth motion and reliable positioning while adding minimal mass to physical structures.
Operating across a standard voltage range of 4.8V to 6.0V DC, it delivers up to 1.8 kg-cm of holding torque at 4.8V. Its internal analog control circuit provides closed-loop positional control across a full 180° angular movement range (90° in each direction from neutral) via standard 50Hz pulse-width modulation (PWM) signals (1ms to 2ms pulse duration).
Weighing just 9 grams, the SG90 features a standard 3-pin connector wire (Brown = GND, Red = V_CC, Orange = PWM Signal) that interfaces directly with 5V and 3.3V microcontrollers like Arduino, ESP32, ESP8266, and Raspberry Pi. It comes bundled with a selection of plastic servo horn arms and mounting screws for easy mechanical attachment.
| Gear Train | Precision plastic/nylon gear mechanism for lightweight, low-friction operation |
|---|---|
| Operating Angle Range | 180° standard positional rotation (90° in each direction from center) |
| Operating Voltage Range | 4.8V to 6.0V DC (Optimal: 5V DC) |
| Stall Torque | 1.8 kg-cm (@ 4.8V) |
| Operating Speed | 0.12 sec/60° (@ 4.8V) |
| Control Interface | Standard 3-pin servo wire (Brown = GND, Red = V_CC, Orange = PWM Signal) |
| Dead Band Width | 10µs for stable position control |
| Package Contents | Includes SG90 servo motor, plastic horn set (single, double, cross arm), and mounting screws |
| Form Factor Dimensions | Micro size 22.2mm × 11.8mm × 31mm (Weight: ≈ 9g) |
What is the operating voltage?
4.8V to 6.0V DC (Optimal: 5V DC).
Which interface does it use?
Standard 3-pin servo wire (Brown = GND, Red = V_CC, Orange = PWM Signal).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, Raspberry Pi projects.
Can I buy the Tower Pro SG90 Servo - 9 gms Mini/Micro Servo Motor in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
