The Tower Pro MG995 Plastic Gear Servo Motor Powerful is a high-torque standard-sized servo motor designed for applications requiring strong rotational force at a lightweight build.
The Tower Pro MG995 Plastic Gear Servo Motor Powerful is a high-torque standard-sized servo motor designed for applications requiring strong rotational force at a lightweight build. Built around a durable plastic/nylon gear train, it reduces gear friction and mechanical noise while delivering substantial torque for robotics, steering mechanisms, and automated linkages.
Operating across a flexible voltage supply of 4.8V to 7.2V DC, the motor delivers up to 10 kg-cm of stall torque at 6.0V. Its internal analog control circuit ensures responsive closed-loop position holding over a full 180° angular movement range using standard 50Hz PWM signals (1ms to 2ms pulse width).

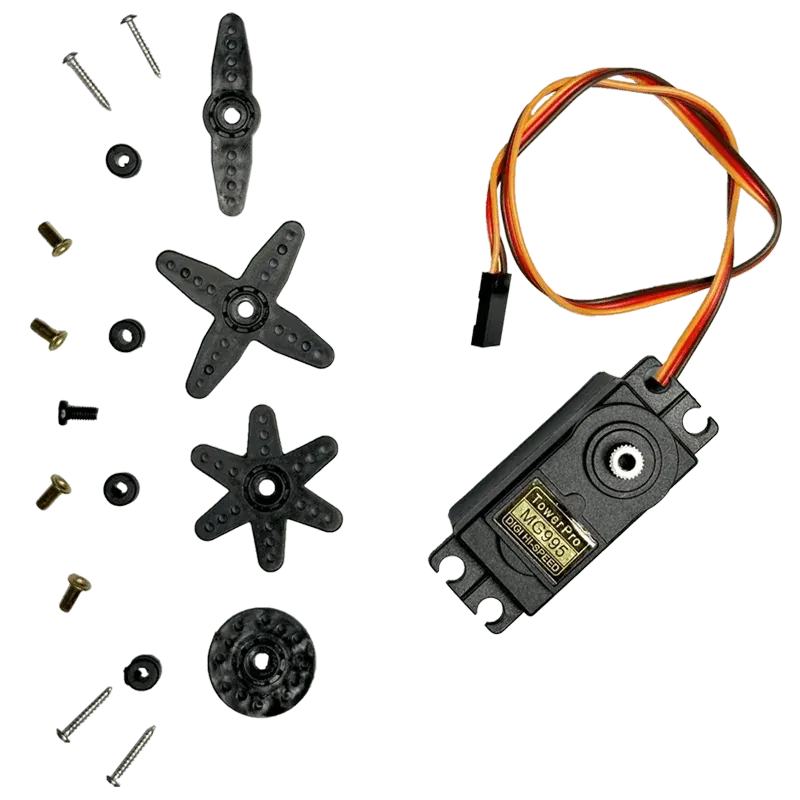

Weighing less than all-metal gear alternatives, this servo motor features a standard 3-pin connector wire (compatible with Arduino, ESP32, Raspberry Pi, and RC receivers). It comes complete with a set of plastic horn arms and mounting screws for easy integration into mechanical builds.
| Gear Train | High-strength plastic/nylon gear mechanism for lightweight and quiet operation |
|---|---|
| Operating Angle Range | 180° standard positional rotation (90° in each direction from neutral) |
| Operating Voltage Range | 4.8V to 7.2V DC |
| Stall Torque | 8.5 kg-cm (@ 4.8V) to 10 kg-cm (@ 6.0V) |
| Operating Speed | 0.20 sec/60° (@ 4.8V) to 0.16 sec/60° (@ 6.0V) |
| Control Interface | Standard 3-pin servo wire (Brown/Black = GND, Red = V_CC, Orange/Yellow = PWM Signal) |
| Dead Band Width | 5µs for consistent position holding |
| Package Contents | Includes servo motor, plastic horn set (single, double, cross arm), and mounting hardware |
| Form Factor Dimensions | Standard size 40.7mm × 19.7mm × 42.9mm (Weight: ≈ 45g) |
What is the operating voltage?
4.8V to 7.2V DC.
Which interface does it use?
Standard 3-pin servo wire (Brown/Black = GND, Red = V_CC, Orange/Yellow = PWM Signal).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi projects.
Can I buy the Tower Pro MG995 Plastic Gear Servo Motor Powerful in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
