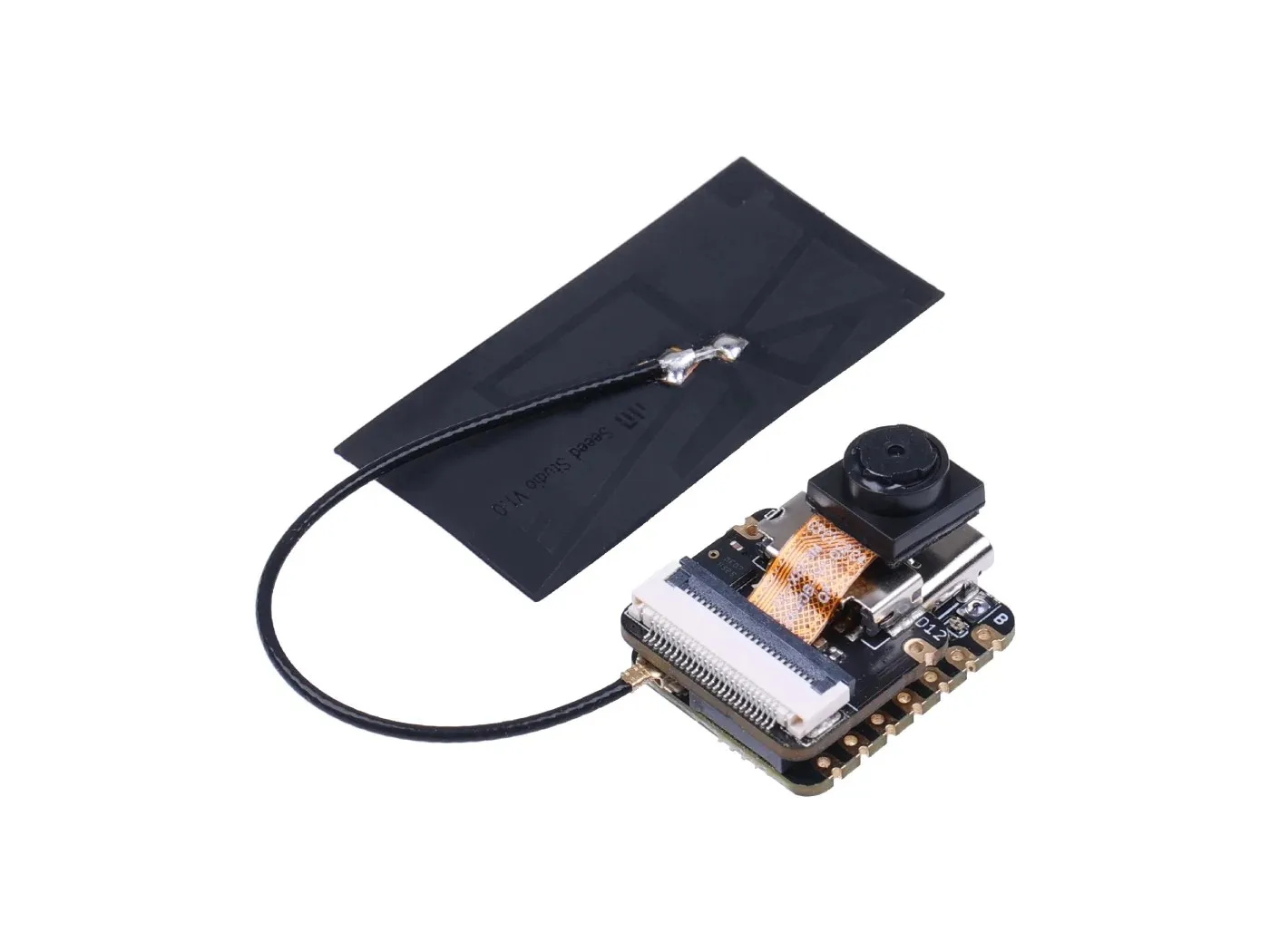

The Seeed Studio XIAO ESP32S3 Sense is an ultra-compact, high-performance development board optimized for computer vision, offline voice processing, TinyML, and edge AI applications. Integrated U.FL / IPEX coaxial antenna connector.
The Seeed Studio XIAO ESP32S3 Sense is an ultra-compact, high-performance development board optimized for computer vision, offline voice processing, TinyML, and edge AI applications. Built around Espressif's ESP32-S3R8 SoC, it packs a 32-bit Xtensa dual-core LX7 processor running at up to 240 MHz alongside dedicated hardware vector instructions for accelerated neural network calculations.
Unlike the standard XIAO ESP32S3, the Sense variant includes a stackable expansion board equipped with an OV2640/OV3660 camera sensor module, a digital PDM microphone, and an onboard microSD card slot supporting up to 32GB (FAT format). This setup allows instant prototyping for face detection, image streaming, voice recording, and local AI inference without requiring additional external modules.
The board features 8MB of external PSRAM and 8MB of SPI Flash memory, ensuring ample memory headroom for camera frame buffers and complex machine learning models. Wireless connectivity includes 2.4 GHz Wi-Fi (802.11b/g/n) and Bluetooth 5.0 (LE) / Bluetooth Mesh with a dedicated U.FL connector for an external antenna. Designed for mobile and battery-operated builds, it incorporates an onboard lithium battery charging circuit and operates via native USB Type-C.
| Core Processor | Espressif ESP32-S3R8 Xtensa 32-bit LX7 Dual-Core @ 240 MHz |
|---|---|
| Onboard Memory | 8MB PSRAM + 8MB SPI Flash |
| Vision Sensor | Detachable camera module (OV2640/OV3660) for image capture & video streaming |
| Audio Sensor | Built-in digital PDM microphone for local voice recognition & audio classification |
| Mass Storage | Onboard microSD card slot (supports up to 32GB FAT) |
| Wireless Communication | 2.4 GHz Wi-Fi (802.11b/g/n) & Bluetooth 5.0 (LE) / Mesh |
| RF Antenna Interface | Integrated U.FL / IPEX coaxial antenna connector |
| Power & Charging | USB Type-C interface with integrated LiPo battery management circuit (100mA charge current) |
| Peripherals & Expansion | 11× GPIOs, 1× UART, 1× I2C, 1× I2S, 1× SPI, 9× ADC channels, Reset & Boot buttons |
| Software Ecosystem | Compatible with Arduino IDE, MicroPython, ESP-IDF, and SenseCraft AI / Edge Impulse |
| Form Factor | Ultra-compact thumb-sized footprint (21mm × 17.5mm) |
Which interface does it use?
2.4 GHz Wi-Fi (802.11b/g/n) & Bluetooth 5.0 (LE) / Mesh.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32 projects.
Can I buy the Seeed Studio XIAO ESP32S3 Sense in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
