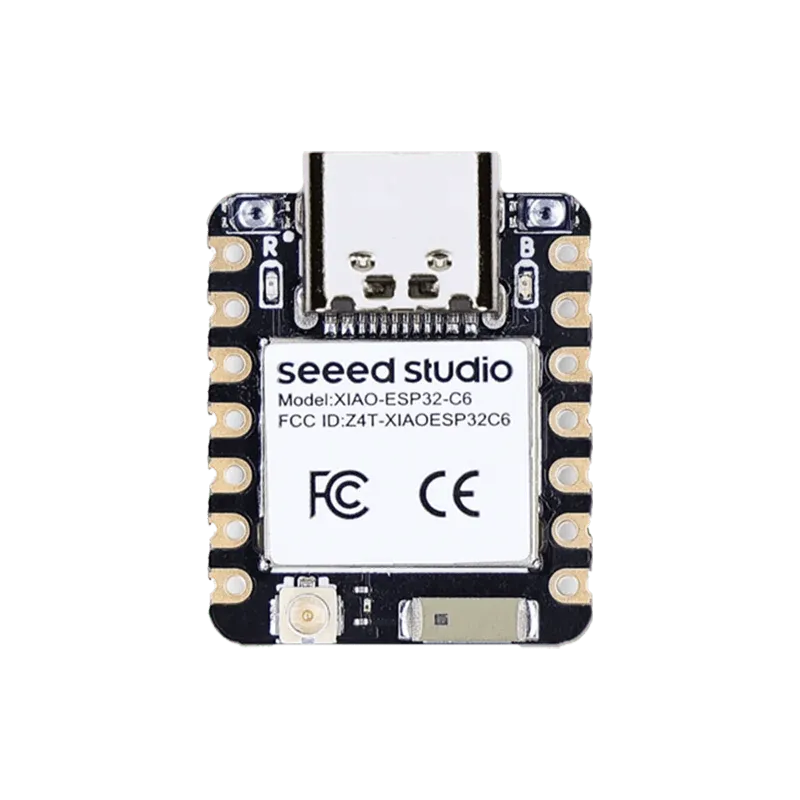

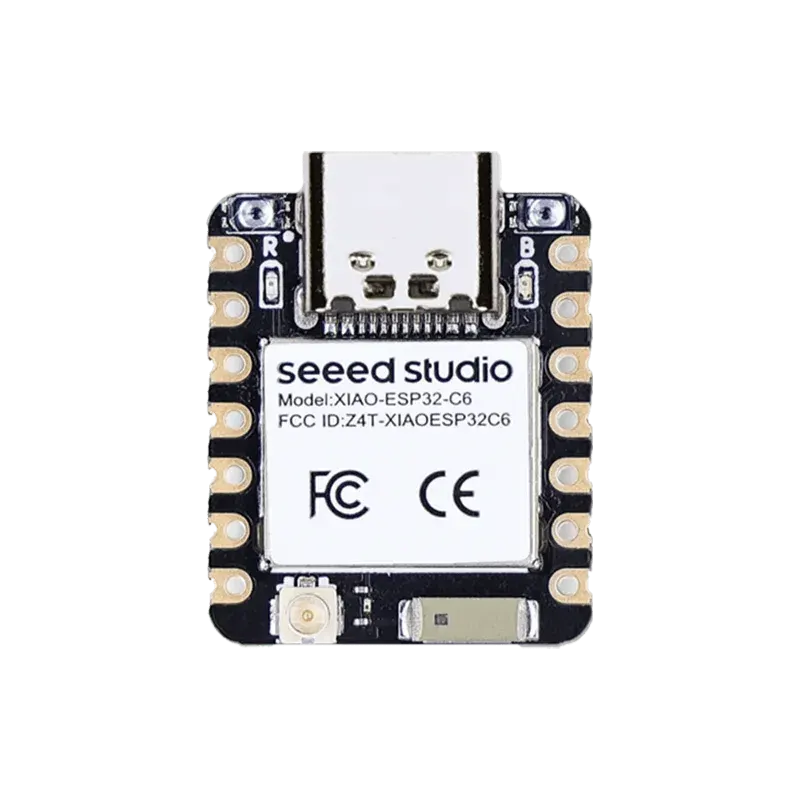

The Seeed Studio XIAO ESP32C6 is an ultra-compact, multi-protocol wireless development board engineered for Matter-compliant smart home hubs, battery-powered IoT nodes, and wearable electronics.
The Seeed Studio XIAO ESP32C6 is an ultra-compact, multi-protocol wireless development board engineered for Matter-compliant smart home hubs, battery-powered IoT nodes, and wearable electronics. Powered by Espressif's ESP32-C6 SoC, it incorporates dual 32-bit RISC-V processors—a high-performance core running up to 160 MHz and a low-power core running up to 20 MHz.
Designed with comprehensive wireless connectivity, the module integrates 2.4 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.3 (LE), Bluetooth Mesh, Zigbee 3.0, and Thread (IEEE 802.15.4). Its native support for the Matter smart home standard enables seamless device interoperability across ecosystem platforms like Apple Home, Google Home, and Home Assistant. Onboard hardware security acceleration features Secure Boot, Flash Encryption, and a Trusted Execution Environment (TEE).
The XIAO ESP32C6 features 512KB HP SRAM and 4MB SPI Flash memory. It comes with an onboard ceramic antenna (80m range) and a dedicated U.FL connector for an external antenna connection. Designed for battery efficiency, it includes a built-in lithium battery charging controller (350mA charging current) and consumes as little as 15µA in deep sleep mode. The single-sided SMD design with castellated holes allows direct surface-mounting onto custom PCBs.
| Core Processors | Dual 32-bit RISC-V cores (HP core @ 160 MHz & LP core @ 20 MHz) |
|---|---|
| Onboard Memory | 512KB SRAM + 4MB SPI Flash |
| Advanced Wireless Subsystem | 2.4 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.3 (LE), Zigbee 3.0, and Thread (802.15.4) |
| Smart Home Protocol | Matter native native compatibility for cross-platform smart home integration |
| Antenna Options | Onboard ceramic antenna + external IPEX / U.FL coaxial connector |
| Power Management | Integrated Li-Po battery charging IC (350mA) & 15µA deep sleep consumption |
| USB Interface | USB Type-C port for power and serial programming |
| Peripheral Interfaces | 11× GPIOs (PWM), 7× ADC channels, 1× UART, 1× LP_UART, 1× I2C, 1× LP_I2C, 1× SPI |
| Hardware Controls | Onboard Reset button, Boot button, User LED, and Power/Charge LED |
| Hardware Security | Secure Boot, Flash Encryption, and TEE (Trusted Execution Environment) |
| Form Factor | Classic Seeed XIAO thumb-sized PCB (21mm × 17.5mm) with castellated pads |
Which interface does it use?
Matter native native compatibility for cross-platform smart home integration.
Is it compatible with ESP32?
Yes. It works with ESP32 projects.
Can I buy the Seeed Studio XIAO ESP32C6 in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
