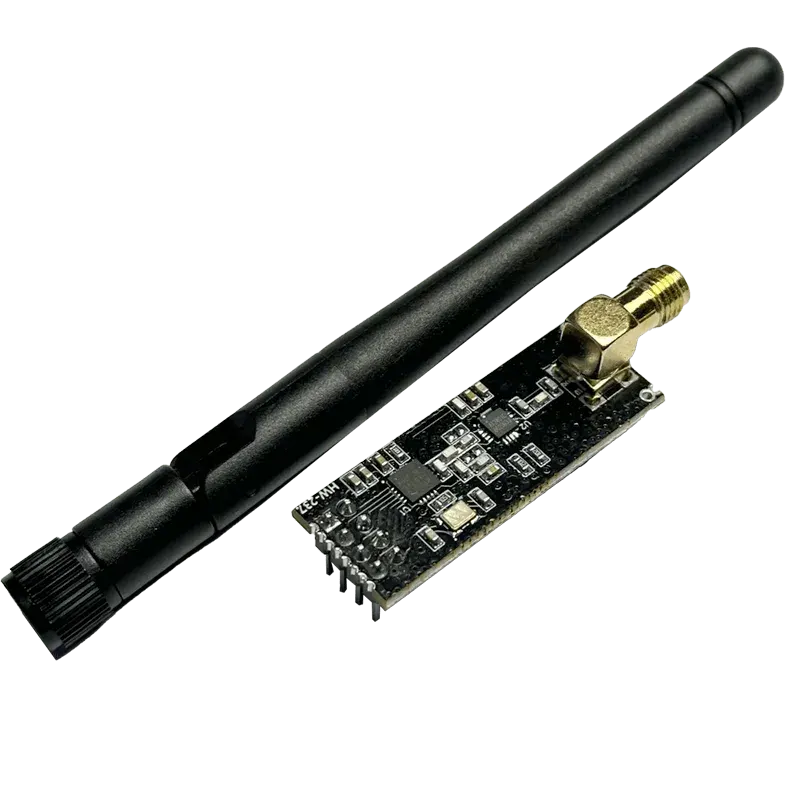

The NRF24L01+ PA+LNA is a long-range 2.4GHz wireless transceiver module with a power amplifier (PA), low-noise amplifier (LNA) and an external SMA antenna.
The NRF24L01+ PA+LNA is a long-range 2.4GHz wireless transceiver module with a power amplifier (PA), low-noise amplifier (LNA) and an external SMA antenna. Compared to the basic NRF24L01, it can communicate over much longer distances, so it is used for RC cars, drones, wireless sensors and Arduino-to-Arduino communication. It connects over SPI and works with the popular RF24 library.
| Chip | nRF24L01+ with PA + LNA |
|---|---|
| Frequency | 2.4 GHz ISM band (2400–2525 MHz) |
| Channels | 125 |
| Data rate | 250 kbps / 1 Mbps / 2 Mbps |
| Range | up to approx. 1000 m line-of-sight (at 250 kbps) |
| Interface | SPI |
| Supply voltage | 1.9V – 3.6V (use 3.3V) |
| Antenna | External 2.4GHz SMA antenna |
Can I power it from Arduino 3.3V pin?
The PA+LNA version draws more current – use a separate 3.3V regulator or an NRF24 adapter board and add a 10µF capacitor across VCC/GND.
Is it 5V tolerant?
The data pins tolerate 5V logic, but VCC must be 3.3V only.
Can I buy the NRF24L01 2.4GHz PA+LNA SMA Wireless Transceiver Module with Antenna in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
