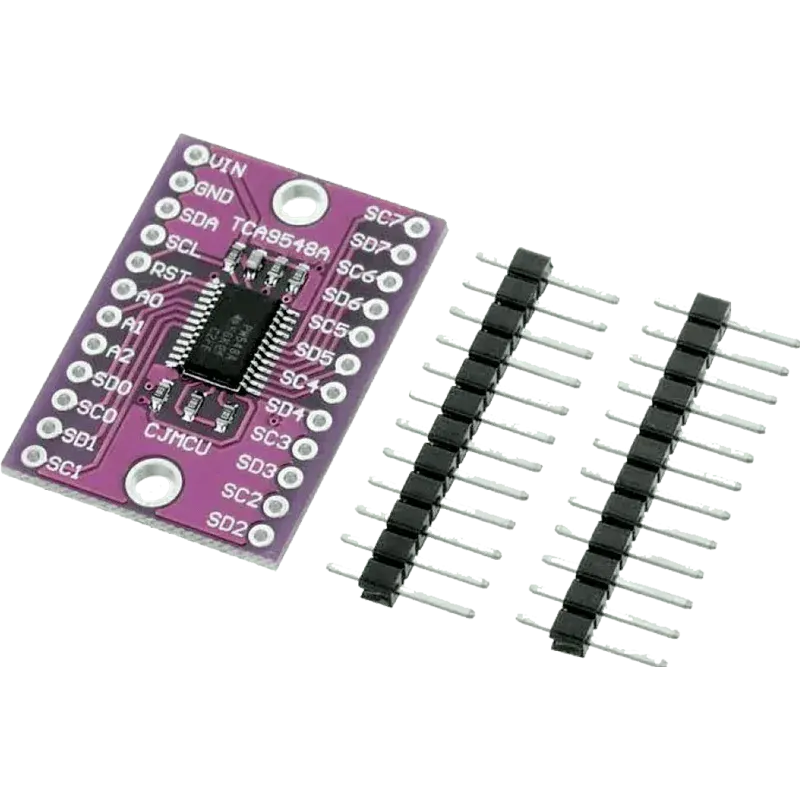

The CJMCU-9548 TCA9548A I2C Multiplexer is an essential interface expansion module designed to solve I2C address conflict issues in complex electronics projects. Built around the Texas Instruments TCA9548A switch IC, this module acts as an 8-channel bidirectional I2C switch, enabling a single microcontroller to communicate with up to 8 I2C devices sharing the exact same I2C address.
By sending simple control commands over the main I2C bus (SDA/SCL), the master microcontroller can select and talk to any single downstream channel (or combination of channels) from SD0/SC0 to SD7/SC7. Additionally, the board features selectable I2C address pins (A0, A1, A2), allowing up to 8 TCA9548A multiplexers to be cascaded together on a single I2C bus to control up to 64 identical I2C devices.
Supports level translation across 1.8V, 2.5V, 3.3V, and 5V logic levels, making it ideal for interfacing multi-sensor arrays (such as multiple OLED displays, distance sensors, or IMUs) with modern development boards. It is fully compatible with 3.3V and 5V microcontrollers including Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, AVR, and custom printed circuit boards (PCBs).
| Controller IC | TCA9548A 8-Channel I2C Switch / Multiplexer |
|---|---|
| Channels | 8 Bidirectional Translating I2C Channels (SD0/SC0 through SD7/SC7) |
| Operating Voltage | 1.65V to 5.5V DC |
| Selectable Main I2C Address | Configurable from 0x70 to 0x77 via A0, A1, A2 solder jumpers |
| Voltage Level Translation | Supports 1.8V, 2.5V, 3.3V, and 5V logic bidirectional conversion |
| Control Interface | Standard I2C serial interface (SDA, SCL, RST, A0, A1, A2) |
| Low Standby Current | Energy efficient operation suitable for battery-powered IoT systems |
What is the operating voltage?
1.65V to 5.5V DC.
Which interface does it use?
Standard I2C serial interface (SDA, SCL, RST, A0, A1, A2).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, Raspberry Pi projects.
Can I buy the CJMCU-9548 TCA9548A I2C Multiplexer in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
