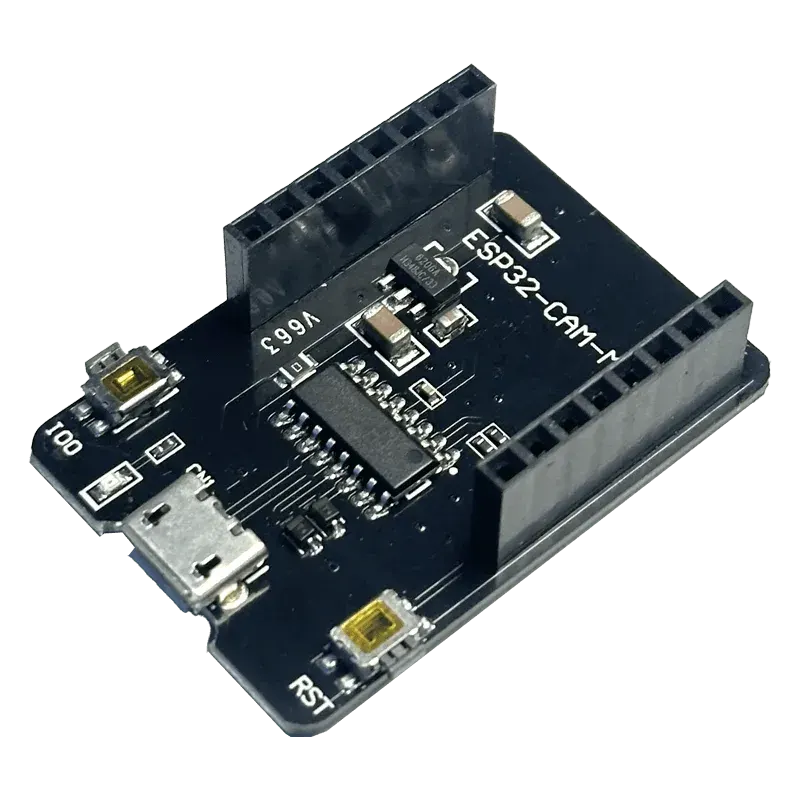

The ESP32 Cam Programmer Module is a specialized USB adapter expansion board designed to eliminate the complex wiring and jumper configurations typically required to program the ESP32-CAM development board. Built with an onboard USB-to-UART serial converter IC (CH340), this module features dedicated female header sockets that allow the ESP32-CAM board to plug directly on top.
Featuring integrated automatic download circuitry (GPIO0 pull-down and reset toggle logic), this programmer allows direct firmware flashing from the Arduino IDE, ESP-IDF, or PlatformIO with a single click of the upload button—no manual press of reset switches or jumper cable toggling required.
Equipped with a standard Micro-USB or Type-C interface, the module delivers steady 5V power to the power-hungry ESP32-CAM during Wi-Fi video streaming and camera operations. It features standard 2.54mm pitch header breakouts, making it fully compatible with ESP32-CAM boards, Arduino IDE, ESP-IDF, and DIY IoT vision projects.
| Core Controller IC | Integrated USB to UART Bridge (CH340) |
|---|---|
| Compatibility | Designed specifically for standard 16-pin ESP32-CAM camera modules |
| Interface | Micro-USB / Type-C USB interface for power and data transfer |
| Auto-Download Circuitry | Automatic boot/reset logic (GPIO0 auto-program activation) |
| Power Supply | Onboard 5V voltage regulation for high-current Wi-Fi camera operations |
| Plug-and-Play Design | Dual female headers for direct board mounting without jumper wires |
| Reset & IO Control | Onboard tactile Reset (RST) button for easy manual restarting |
| Status Indicators | Power (PWR) and Serial Communication (TX/RX) LEDs |
What is the operating voltage?
Onboard 5V voltage regulation for high-current Wi-Fi camera operations.
Which interface does it use?
Micro-USB / Type-C USB interface for power and data transfer.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32 projects.
Can I buy the ESP32 Cam Programmer Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
