The HT7833 3.3V 500mA Low Dropout Voltage is a high-efficiency, surface-mount low-dropout (LDO) three-terminal fixed positive voltage regulator designed to deliver a steady 3.3V DC rail from higher… 3.3V DC (Fixed, ±3% accuracy) · 4.3V to 8V DC · 500mA.

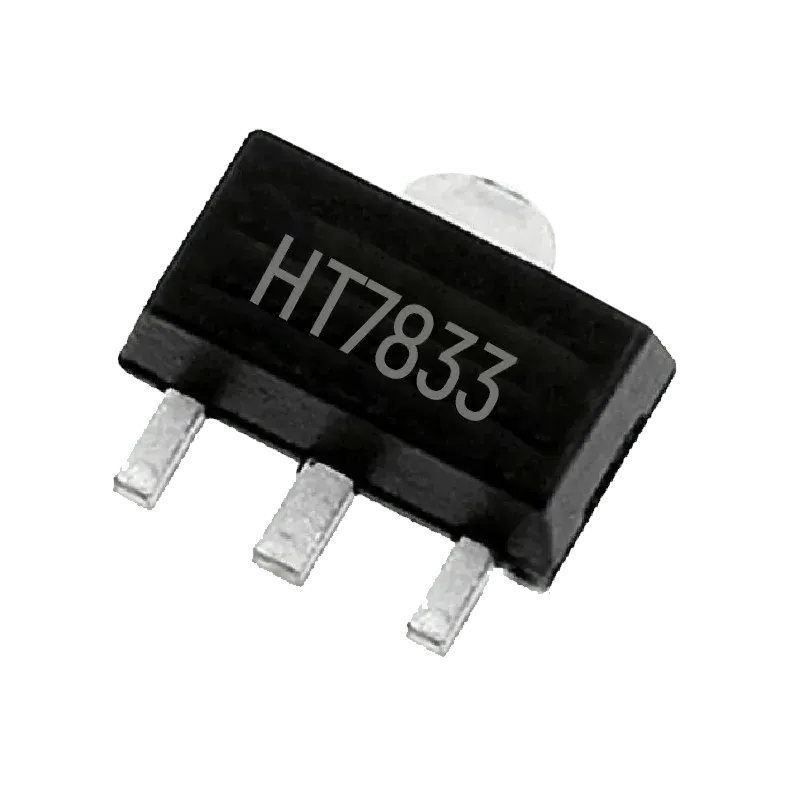

The HT7833 3.3V 500mA Low Dropout Voltage is a high-efficiency, surface-mount low-dropout (LDO) three-terminal fixed positive voltage regulator designed to deliver a steady 3.3V DC rail from higher input voltages. Housed in a miniature SOT-89 footprint, this SMD regulator is designed for space-conscious circuit designs requiring high thermal performance in a small form factor.
Featuring a low dropout voltage and low quiescent current, the HT7833-SOT89 easily handles up to 500mA of continuous output current. It includes internal short-circuit current limiting and thermal overload protection, guarding connected microcontrollers and radio modules against accidental power faults.
This SOT-89 SMD regulator is widely used to power 3.3V microcontrollers, Wi-Fi/Bluetooth transceivers, and low-power digital sensors directly from 5V USB buses or lithium battery supplies. It is fully compatible with surface-mount custom PCBs, break-out adapter boards, and development platforms like ESP8266, ESP32, STM32, and Raspberry Pi Pico.
| Output Voltage | 3.3V DC (Fixed, ±3% accuracy) |
|---|---|
| Input Voltage Range | 4.3V to 8V DC |
| Maximum Output Current | 500mA |
| Low Dropout Voltage | ~360mV at 100mA load |
| Package Type | SOT-89 (SMD / Surface Mount) |
| Pin Configuration | Standard SOT-89 Pinout (GND - V_IN - V_OUT) |
What is the operating voltage?
3.3V DC (Fixed, ±3% accuracy).
Is it compatible with ESP32 and ESP8266?
Yes. It works with ESP32, ESP8266, Raspberry Pi, STM32 projects.
Can I buy the HT7833 3.3V 500mA Low Dropout Voltage in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
