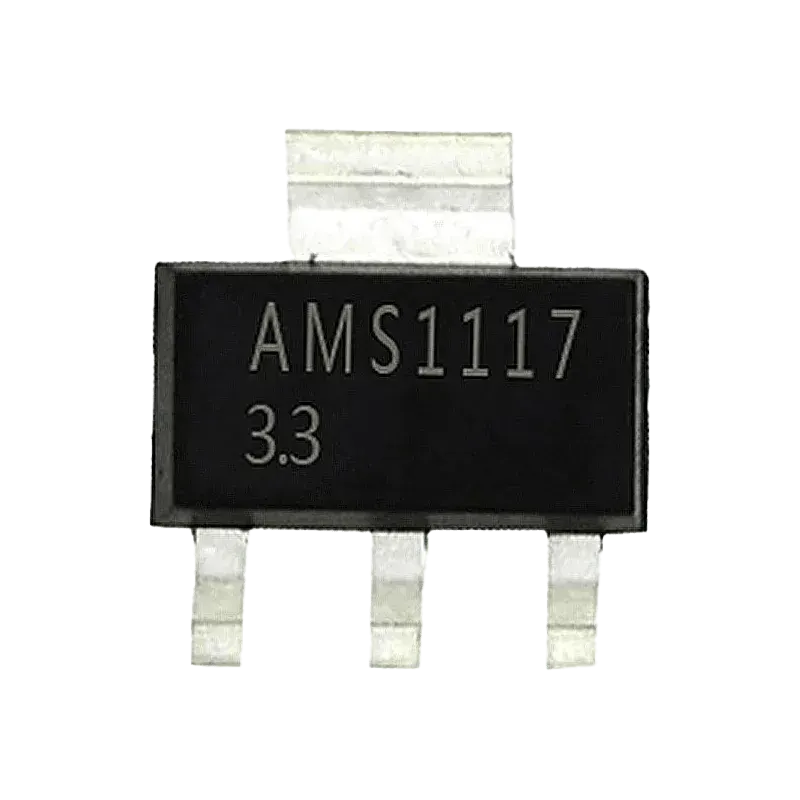

The AMS1117 3.3V Voltage Regulator Module is a convenient, plug-and-play power supply board designed to step down higher DC input voltages to a precise 3.3V DC output.
The AMS1117 3.3V Voltage Regulator Module is a convenient, plug-and-play power supply board designed to step down higher DC input voltages to a precise 3.3V DC output. Based on the high-efficiency AMS1117-3.3 linear voltage regulator IC, this module is an essential power solution for driving 3.3V logic microcontrollers, wireless modules, and low-voltage sensors from 5V USB ports or 9V–12V power adapters.
The module features a built-in power indicator LED to confirm active operation and double-panel design with dual pin headers (2-pin input and 2-pin output) for easy breadboard, stripboard, and custom PCB wiring. Integrated thermal shutdown and current limiting protection ensure reliable performance and guard connected components against over-current conditions.
It is widely used in IoT projects, robotics, sensor conditioning, and microcontroller development environments. It is fully compatible with ESP8266 (ESP-01, NodeMCU), ESP32, Raspberry Pi, ARM Cortex, STM32, and 3.3V sensor interfaces.
| Output Voltage | 3.3V DC (Fixed, ±1.5% accuracy) |
|---|---|
| Input Voltage Range | 4.5V to 12V DC (Input must be at least 1V higher than 3.3V output) |
| Maximum Output Current | 800mA (Dependent on input voltage and thermal dissipation) |
| Onboard Power Indicator | Red LED status indicator |
| Output Interface | 2-pin header for 3.3V DC and GND |
| Input Interface | 2-pin header for V_IN and GND |
| PCB Dimensions | Compact 25mm x 11mm footprint |
What is the operating voltage?
3.3V DC (Fixed, ±1.5% accuracy).
Which interface does it use?
2-pin header for 3.3V DC and GND.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, NodeMCU projects.
Can I buy the AMS1117 3.3V Voltage Regulator Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
