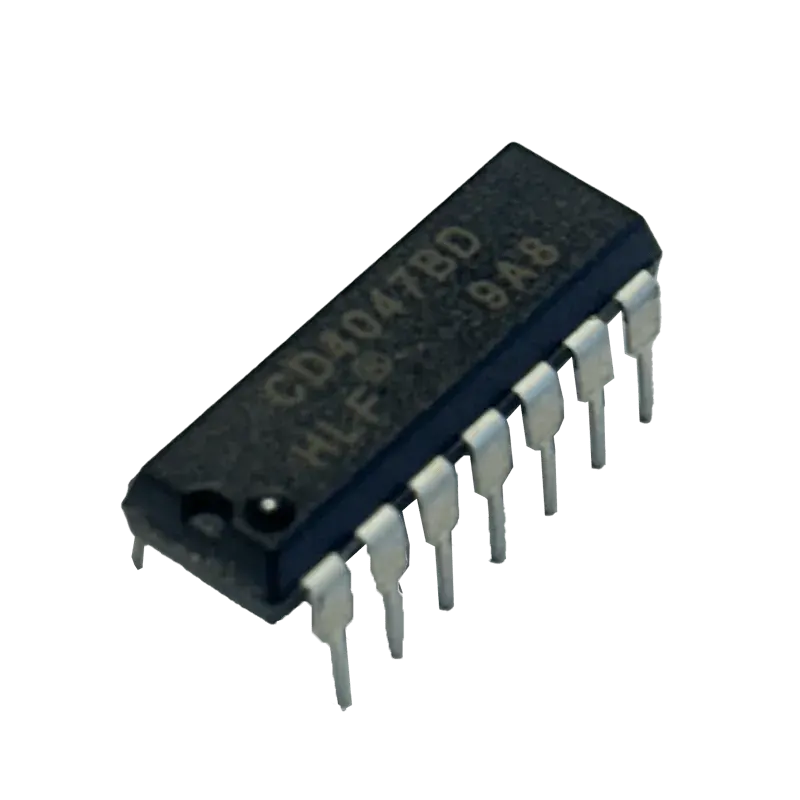

The CD4047BE Monostable/Astable Multivibrator IC is a low-power CMOS logic integrated circuit designed for precise pulse generation, frequency division, and timing control.
The CD4047BE Monostable/Astable Multivibrator IC is a low-power CMOS logic integrated circuit designed for precise pulse generation, frequency division, and timing control. It can be configured to operate in either Monostable (one-shot pulse output) or Astable (free-running square wave oscillator) mode using a single external resistor and capacitor (R_C and C_C).
Housed in a 14-pin DIP (Dual In-line Package), the CD4047BE features buffered complementary outputs (Q and \bar{Q}) along with an Oscillator Output running at twice the frequency of Q, making it an industry standard for power inverter driver circuits, clock generators, and pulse width delay networks.
It is compatible with 3V to 18V DC power supplies, breadboards, prototyping stripboards, custom PCBs, Arduino frequency control systems, power electronics, and general embedded DIY projects.
| Type | CMOS Monostable/Astable Multivibrator IC |
|---|---|
| Logic Family | CD4000 Series (CMOS) |
| Model | CD4047BE |
| Package Type | 14-Pin DIP (Through-Hole) |
| Operating Modes | Monostable (One-Shot) and Astable (Free-Running) |
| Outputs | True (Q), Complementary (\bar{Q}), and Oscillator Output (2 imes frequency) |
| Low Power Consumption | Ideal for battery-operated devices |
Is it compatible with Arduino?
Yes. It works with Arduino projects.
Can I buy the CD4047BE Monostable/Astable Multivibrator IC in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
