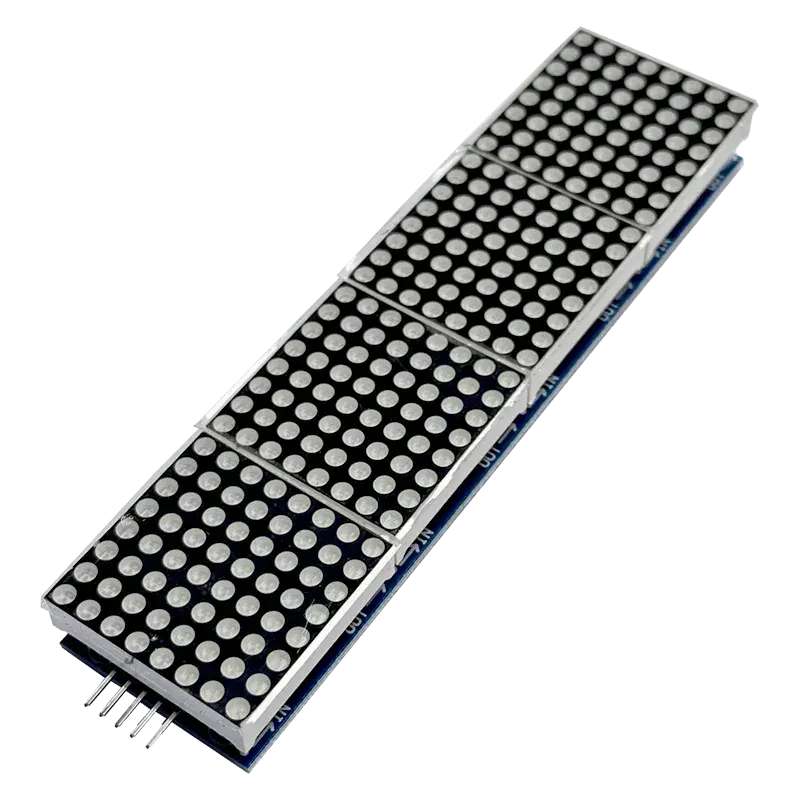

The MAX7219 LED Dot Matrix 4-in-1 Display Module features four integrated 8×8 LED dot matrix panels daisy-chained into a single continuous 32×8 display board. 32x8 LED Matrix (256 Red LEDs) · 5-Pin Serial SPI (VCC, GND, DIN, CS, CLK) · 5V DC.
The MAX7219 LED Dot Matrix 4-in-1 Display Module features four integrated 8×8 LED dot matrix panels daisy-chained into a single continuous 32×8 display board. Driven by four MAX7219 ICs, it controls 256 individual LEDs while using minimal processor resources and IO pins.
It connects using a 5-pin SPI interface (VCC, GND, DIN, CS, CLK) and comes bundled with a 5P jumper wire cable for quick plug-and-play prototyping. The module also features output headers on the far end, allowing multiple 4-in-1 units to be connected in series for extended message boards.
It is ideal for Arduino, ESP32, Raspberry Pi, STM32, robotics, and embedded DIY electronic display systems.
| Type | 4-in-1 Cascaded 8x8 LED Dot Matrix Display Module |
|---|---|
| Driver IC | MAX7219 (4 units onboard) |
| Total Resolution | 32x8 LED Matrix (256 Red LEDs) |
| Interface | 5-Pin Serial SPI (VCC, GND, DIN, CS, CLK) |
| Operating Voltage | 5V DC |
| Included Accessories | 5-Pin female-to-female jumper wire cable |
| Cascading Support | Input and output headers for extending displays |
What is the operating voltage?
5V DC.
Which interface does it use?
5-Pin Serial SPI (VCC, GND, DIN, CS, CLK).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi, STM32 projects.
Can I buy the MAX7219 LED Dot Matrix 4 In 1 Display with 5P Line Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
