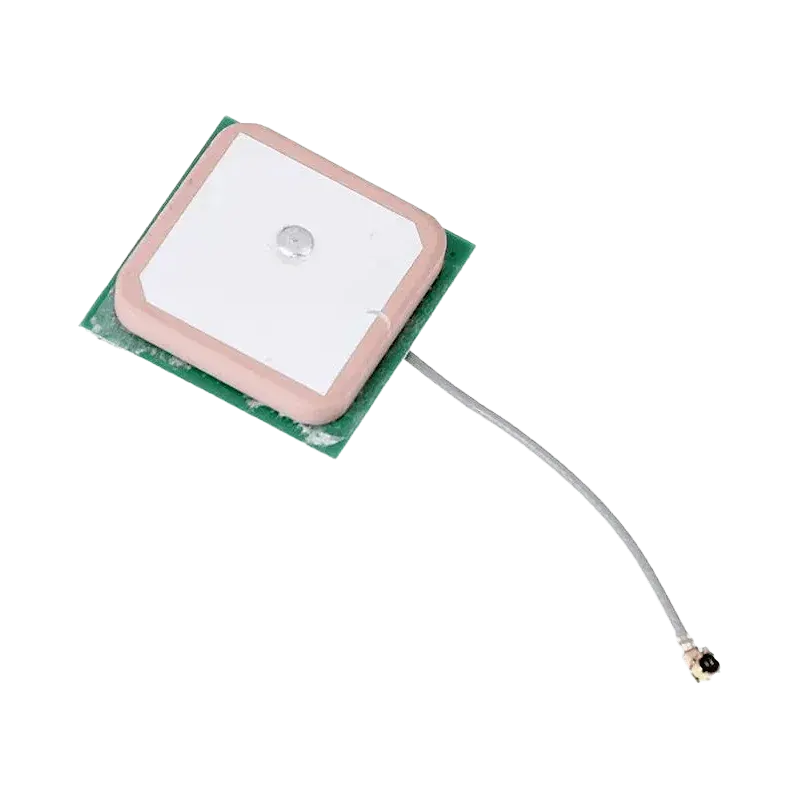

The 25×25×8mm 28dB High Gain Ceramic Active GPS Antenna is a compact GPS antenna designed to provide strong and reliable satellite signal reception for GPS receiver modules. 25x25x8mm.
The 25×25×8mm 28dB High Gain Ceramic Active GPS Antenna is a compact GPS antenna designed to provide strong and reliable satellite signal reception for GPS receiver modules.
It features a built-in ceramic patch antenna and active LNA, providing up to 28dB gain for improved GPS signal reception. Its compact size and 5cm cable with U.FL/IPEX connector make it suitable for embedded GPS applications where space is limited.
The antenna operates on the GPS L1 frequency of 1575.42 MHz and is commonly used with GPS modules such as NEO-6M, NEO-7M and NEO-8M.
| Antenna Type | Active Ceramic GPS Antenna |
|---|---|
| Dimensions | 25 × 25 × 8 mm |
| Gain | 28 dB |
| Cable Length | 5 cm |
| Frequency | 1575.42 MHz (GPS L1) |
| Connector | U.FL / IPEX |
| Polarization | Right-Hand Circular Polarization (RHCP) |
| Impedance | 50Ω |
| Size | 25x25x8mm |
Is it compatible with Arduino?
Yes. It works with Arduino projects.
Can I buy the 25x25x8mm 28db High Gain 5cm Length Built-in Ceramic Active GPS Antenna in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
