The Hi-Link HLK 10M09 9V/1.1A Switch Power Supply Module is a miniature PCB-mount AC/DC switching power supply designed to convert household AC mains voltage (90V to 245V AC) into a clean, isolated…

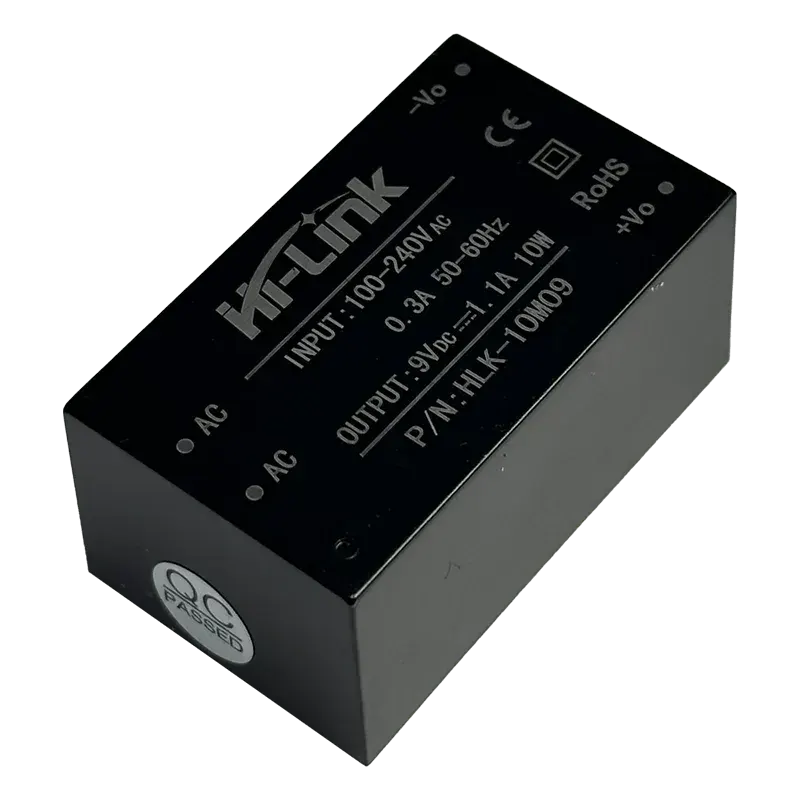

The Hi-Link HLK 10M09 9V/1.1A Switch Power Supply Module is a miniature PCB-mount AC/DC switching power supply designed to convert household AC mains voltage (90V to 245V AC) into a clean, isolated, and regulated 9V DC output. Built inside a compact, flame-retardant plastic casing, it offers a reliable power solution for space-constrained electronics, smart home automation hubs, and microcontroller circuits.
It features advanced green power technology with ultra-low no-load power consumption (< 0.1W), high conversion efficiency, and low ripple and noise. The module includes integrated over-current, short-circuit, and over-temperature protection circuitry that automatically recovers the unit once a fault condition is cleared, ensuring safe continuous operation in industrial and consumer applications.
| Input Voltage Range | 90V to 245V AC (47Hz to 63Hz) or 100V to 340V DC |
|---|---|
| Output Voltage | 9V DC regulated constant voltage |
| Rated Output Power | 10W (Maximum current output up to 1100mA) |
| Efficiency | High conversion efficiency (≥ 78% - 80% typical) |
| Standby Power Consumption | Ultra-low no-load power draw (< 0.1W) |
| Protection Mechanisms | Built-in short-circuit protection, over-current protection, and over-temperature protection with auto-recovery |
| Isolation & Safety | High isolation voltage between input and output (3000V AC test voltage; meets UL/CE safety standards) |
| Form Factor | Compact PCB-mount plastic module with pins for direct soldering |
| Current | 1.1A |
What is the operating voltage?
90V to 245V AC (47Hz to 63Hz) or 100V to 340V DC.
Can I buy the Hi-Link HLK 10M09 9V/1.1A Switch Power Supply Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
