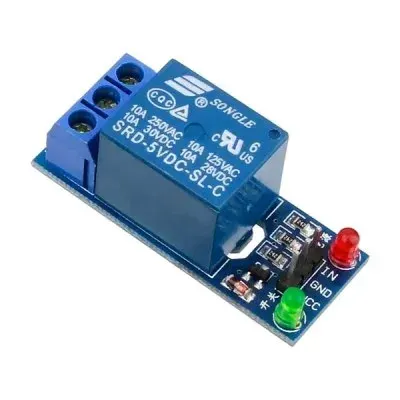

The 1 Channel 5V Relay Module with Optocoupler is an essential interface board designed to let microcontrollers, Arduino boards, and IoT controllers switch heavy AC or DC loads safely. 5V DC logic level · Up to 10A at 250V AC or 10A at 30V DC.
The 1 Channel 5V Relay Module with Optocoupler is an essential interface board designed to let microcontrollers, Arduino boards, and IoT controllers switch heavy AC or DC loads safely. The onboard relay is equipped with high-current switching contacts capable of handling up to 10A at 250V AC or 30V DC.
Featuring built-in optocoupler isolation, this module protects sensitive control circuitry from voltage spikes, electrical noise, and back-EMF. It includes a trigger selection jumper allowing high-level or low-level triggering, optical isolation, and an indicator LED to easily monitor relay status during prototyping and deployment.
| Control Voltage (VCC) | 5V DC logic level |
|---|---|
| Number of Channels | 1 independent relay channel with a status indicator LED |
| Contact Capacity | Up to 10A at 250V AC or 10A at 30V DC |
| Isolation | Onboard optocoupler for complete electrical isolation between control logic and switched loads |
| Trigger Mode | Configurable high-level or low-level triggering via onboard jumper |
| Fault-Tolerant Design | Designed so that even if the control line breaks, the relay will not malfunction |
| Form Factor | Single-channel PCB module with screw terminal blocks for easy wire connections |
What is the operating voltage?
5V DC logic level.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi projects.
Can I buy the 1 Channel 5V Relay Module without Optocoupler in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
