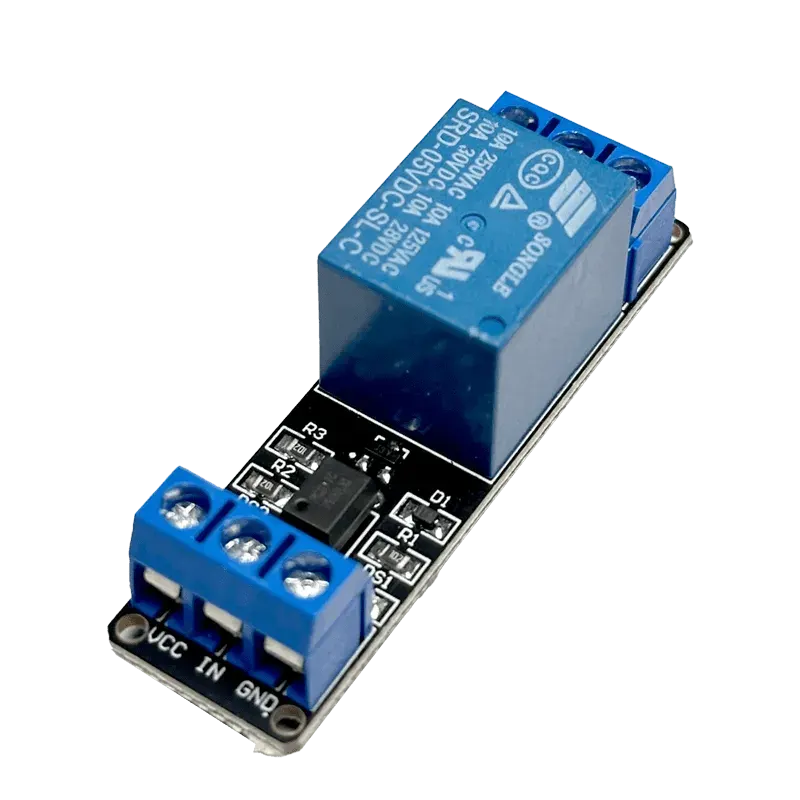

The 1 Channel 5V Relay Module with Optocoupler lets Arduino, ESP32 or Raspberry Pi switch high-power AC or DC loads like lights, fans and pumps.
The 1 Channel 5V Relay Module with Optocoupler lets Arduino, ESP32 or Raspberry Pi switch high-power AC or DC loads like lights, fans and pumps. The optocoupler isolates the controller from the relay coil, and screw terminals make wiring easy.
| Channels | 1 |
|---|---|
| Coil voltage | 5V DC |
| Contact rating | 10A 250V AC / 10A 30V DC |
| Isolation | Optocoupler |
| Trigger | Low-level (some versions selectable) |
| Terminals | COM, NO, NC |
| Indicators | Power and relay LEDs |
What is the operating voltage?
5V DC.
Can ESP32 drive it?
Yes in most cases; power the relay from 5V and connect the IN pin to an ESP32 GPIO.
Is it safe for 230V?
The relay is rated for 250V AC, but mains wiring must be done carefully and insulated.
Can I buy the 1 Channel 5V Relay Module with Optocoupler in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
