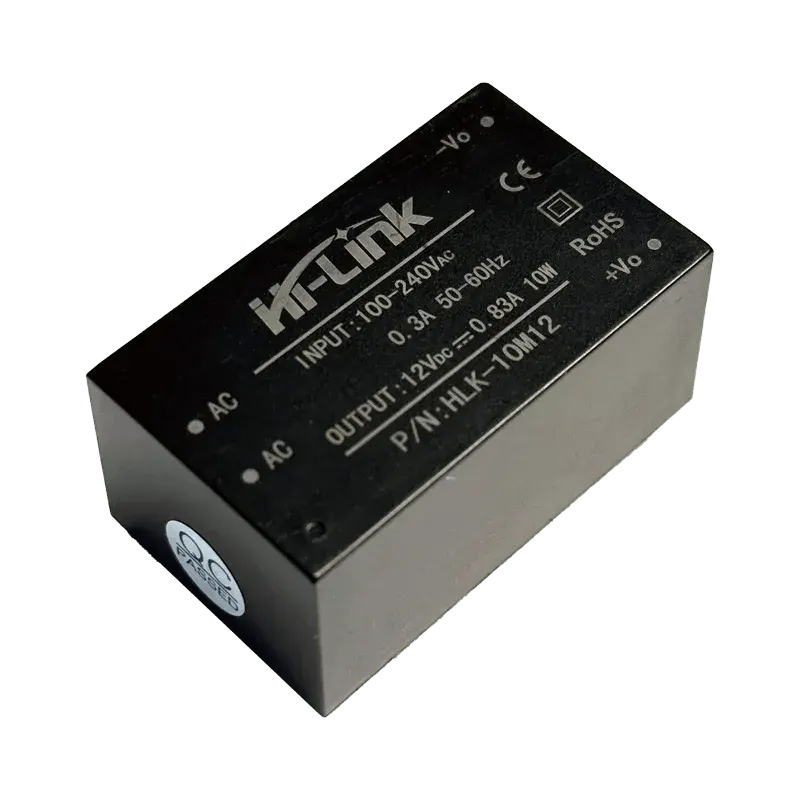

The Hi-Link HLK 10M12 12V/10W Switch Power Supply Module is a miniature PCB-mount AC/DC switching power supply designed to convert household AC mains voltage (90V to 245V AC) into a clean, isolated, and regulated 12V DC output. Built inside a compact, flame-retardant plastic casing, it offers a reliable power solution for space-constrained electronics, smart home automation hubs, and microcontroller circuits.
It features advanced green power technology with ultra-low no-load power consumption (< 0.1W), high conversion efficiency, and low ripple and noise. The module includes integrated over-current, short-circuit, and over-temperature protection circuitry that automatically recovers the unit once a fault condition is cleared, ensuring safe continuous operation in industrial and consumer applications.
| Input Voltage Range | 90V to 245V AC (47Hz to 63Hz) or 100V to 340V DC |
|---|---|
| Output Voltage | 12V DC regulated constant voltage |
| Rated Output Power | 10W (Maximum current output up to 833mA) |
| Efficiency | High conversion efficiency (≥ 78% - 80% typical) |
| Standby Power Consumption | Ultra-low no-load power draw (< 0.1W) |
| Protection Mechanisms | Built-in short-circuit protection, over-current protection, and over-temperature protection with auto-recovery |
| Isolation & Safety | High isolation voltage between input and output (3000V AC test voltage; meets UL/CE safety standards) |
| Form Factor | Compact PCB-mount plastic module with pins for direct soldering |
What is the operating voltage?
90V to 245V AC (47Hz to 63Hz) or 100V to 340V DC.
Is it compatible with ESP32 and ESP8266?
Yes. It works with ESP32, ESP8266 projects.
Can I buy the Hi-Link HLK 10M12 12V/10W Switch Power Supply Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
