The R385 DC Water Diaphragm Pump 12V is a compact, self-priming fluid transfer pump designed for microfluidic control, automated plant watering systems, aquarium fluid circulation, and DIY… 6V to 12V DC (9V-12V nominal) · 0.5A - 0.7A load current (1.5A - 2A peak startup current).

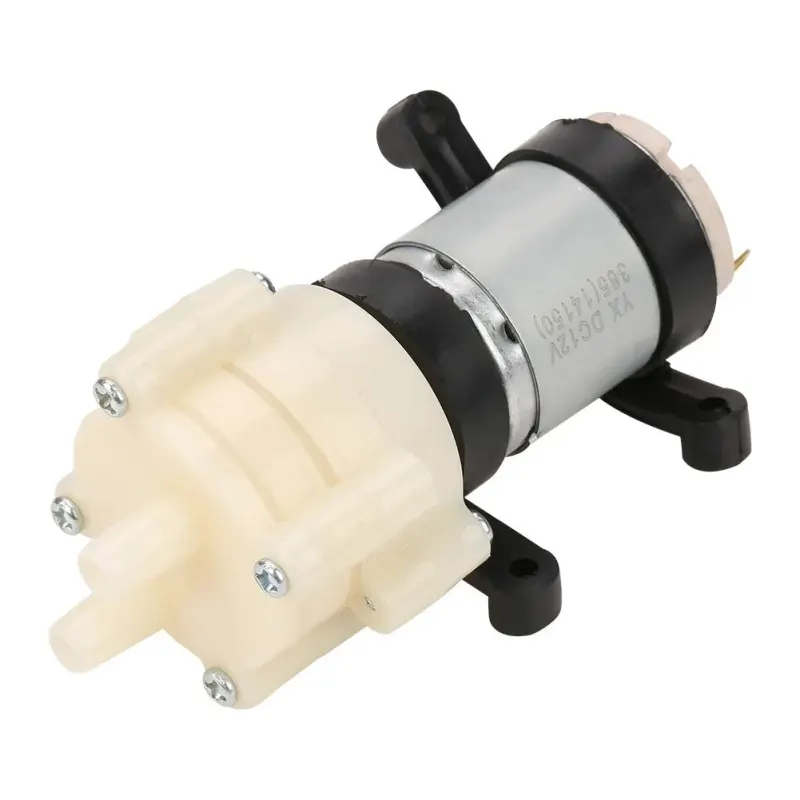

The R385 DC Water Diaphragm Pump 12V is a compact, self-priming fluid transfer pump designed for microfluidic control, automated plant watering systems, aquarium fluid circulation, and DIY electronics prototypes. Built around an internal DC motor driving a mechanical diaphragm mechanism, it creates a vacuum to lift and push non-viscous clean liquids without requiring priming.
Unlike submersible pumps, the R385 is non-submersible and operates externally. It comes equipped with flexible silicone dampening ring mounts that suppress mechanical motor vibration and noise during operation. It features two 8.5mm outer diameter barbed nozzle ports that fit standard 6mm inner diameter flexible silicone tubing.
Operating smoothly across a voltage supply of 6V to 12V DC (9V-12V nominal, 1A-2A recommended startup power supply), it delivers a maximum flow rate of 1.5 to 2 L/min. It interfaces effortlessly with standard relay modules, MOSFET drivers, or motor controllers like the L298N for micro-controller-driven automation via Arduino, ESP8266, or Raspberry Pi.
| Pump Mechanism | Self-priming positive displacement diaphragm mechanism |
|---|---|
| Operating Voltage | 6V to 12V DC (9V-12V nominal) |
| Operating Current | 0.5A - 0.7A load current (1.5A - 2A peak startup current) |
| Flow Rate | Approx. 1.5 L/min to 2 L/min (voltage & head dependent) |
| Head Lift & Suction | Maximum head lift up to 3 meters, maximum self-priming suction up to 2 meters |
| Nozzle Dimensions | Outer diameter approx. 8.5mm (fits 6mm ID flexible silicone hose) |
| Liquid Temperature | Suitable for clean water up to 70°C-80°C |
| Mounting | Includes vibration-damping rubber bracket ring for easy mounting and low noise operation |
| Installation Type | Non-submersible (external placement only) |
What is the operating voltage?
6V to 12V DC (9V-12V nominal).
Is it compatible with Arduino and ESP8266?
Yes. It works with Arduino, ESP8266, Raspberry Pi projects.
Can I buy the R385 DC Water Diaphragm Pump 12V in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
