The 12V 100 RPM DC Geared Motor is a versatile, high-performance power unit designed for mobile robotics, automated machinery, and DIY mechanical projects requiring an ideal balance between speed… 100 RPM (@ 12V DC nominal) · 4V to 12V DC (Optimal: 12V DC).

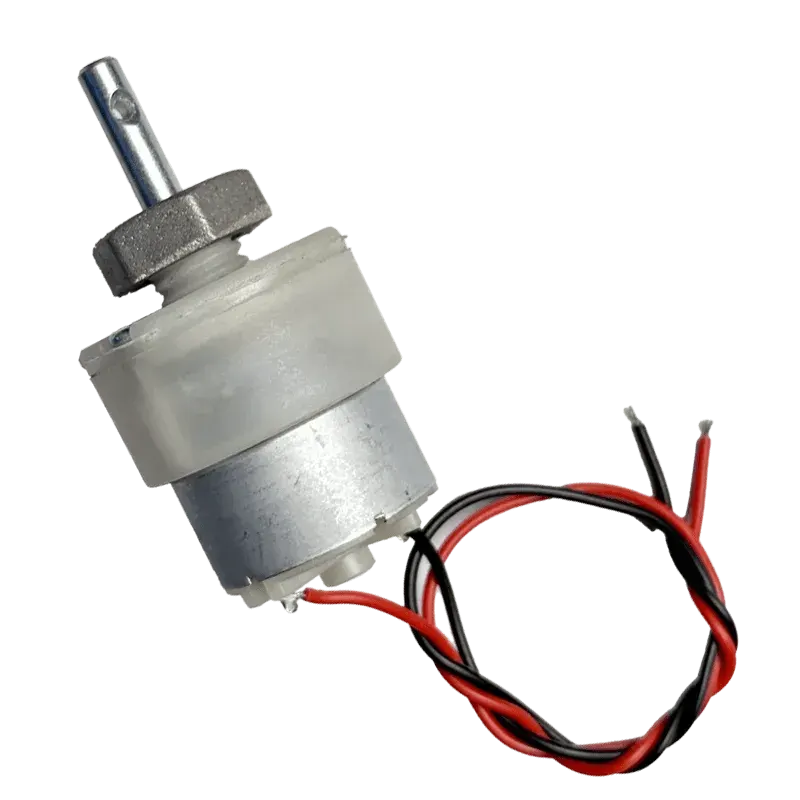

The 12V 100 RPM DC Geared Motor is a versatile, high-performance power unit designed for mobile robotics, automated machinery, and DIY mechanical projects requiring an ideal balance between speed and rotational torque. Built around an internal high-speed DC motor coupled to a metal spur reduction gearbox, it delivers a steady output speed of 100 RPM at nominal 12V DC supply.
Featuring a centered 6mm output shaft with an internal threaded hole for mounting wheels or mechanical couplers, the motor's internal gearbox uses wear-resistant metal gears factory-lubricated with lithium grease for low friction, quiet performance, and long operational life under heavy loads.
Operating across a flexible voltage range of 4V to 12V DC, the motor draws a minimal no-load current (≈ 60mA) and up to 300mA under load, delivering up to 2.5 kg-cm to 5 kg-cm of operating torque. It interfaces seamlessly with standard motor drivers like the L298N, BTS7960, or Cytron modules, making it a primary choice for 2WD/4WD robotic platforms, motorized conveyer systems, and automatic machinery.
| Gearbox Type | Centered internal all-metal spur gearbox (sealed & lubricated with lithium grease for maintenance-free operation) |
|---|---|
| Output Shaft | Centered 6mm diameter steel shaft with internal mounting thread/hole |
| Rated Output Speed | 100 RPM (@ 12V DC nominal) |
| Operating Voltage Range | 4V to 12V DC (Optimal: 12V DC) |
| Power Draw | Low no-load current (≈ 60mA) and loaded current (≈ 300mA) |
| Torque Rating | Delivers up to 2.5 kg-cm to 5 kg-cm operating torque (28 kg-cm stall torque) |
| Construction | Metal gearhead attached to durable DC motor casing with face-mount threaded holes |
What is the operating voltage?
4V to 12V DC (Optimal: 12V DC).
Can I buy the 12V 100 RPM DC Geared Motor in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
