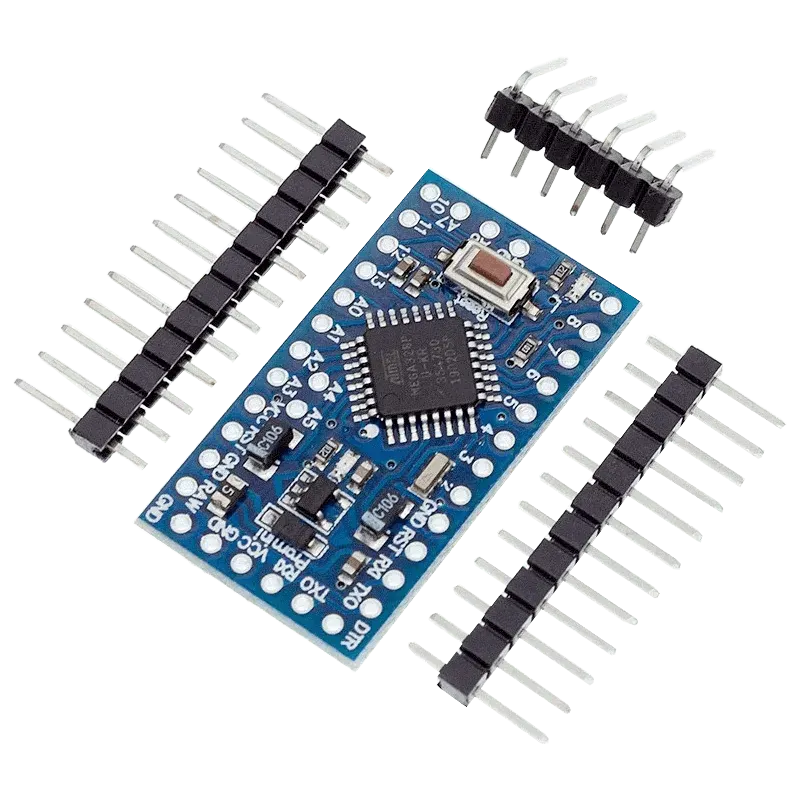

The Pro Mini ATmega328P 5V 16MHz is a minimalistic, high-performance microcontroller board built for embedded projects where size, weight, and power efficiency are critical.
The Pro Mini ATmega328P 5V 16MHz is a minimalistic, high-performance microcontroller board built for embedded projects where size, weight, and power efficiency are critical. Powered by the Microchip ATmega328P 8-bit AVR microcontroller running at 16 MHz, it delivers identical processing capability and code compatibility to the standard Arduino Uno, but in a fraction of the physical footprint.
To maintain its ultra-compact form factor and low cost, this board omits an onboard USB-to-UART bridge chip and power jack. Programming is accomplished using an external FTDI programmer, USB-to-TTL adapter (like FT232RL or CP2102), or an ICSP programmer. The board includes an onboard 5V voltage regulator accepting raw DC voltage (5V to 12V on the RAW pin), an 8 MHz / 16 MHz resonator, reset button, and onboard status LED on digital pin 13.
Supplied without pre-soldered header pins, this version gives developers total flexibility to solder custom wiring directly to the board, solder right-angle or straight male/female headers, or integrate the module directly onto PCB motherboards. Operating on a 5V logic supply, it seamlessly interfaces with standard 5V sensors, relays, display screens, and wireless modules, making it a staple for custom IoT nodes, robotics, and flight controllers.
| Microcontroller MCU | Microchip ATmega328P 8-bit AVR Microcontroller |
|---|---|
| Clock Speed | 16 MHz crystal resonator |
| Operating Voltage | 5V DC logic supply |
| Input Supply Voltage | 5V to 12V DC (via RAW pin) or regulated 5V DC (via V_CC pin) |
| Digital I/O Pins | 14 digital input/output pins (6 offer PWM output) |
| Analog Input Channels | 8 analog inputs (A0 - A7) |
| Flash Memory | 32 KB (2 KB used by bootloader) |
| SRAM / EEPROM | 2 KB SRAM / 1 KB EEPROM |
| Serial Interfaces | UART TTL (TX/RX), SPI, and I2C (SDA/SCL) |
| Unsoldered Header Holes | Clean board version without pre-soldered pin headers for maximum custom integration |
| Onboard Features | 5V LDO voltage regulator, reset button, and power/status LEDs |
| Frequency | 16MHz |
What is the operating voltage?
5V DC logic supply.
Which interface does it use?
UART TTL (TX/RX), SPI, and I2C (SDA/SCL).
Is it compatible with Arduino?
Yes. It works with Arduino projects.
