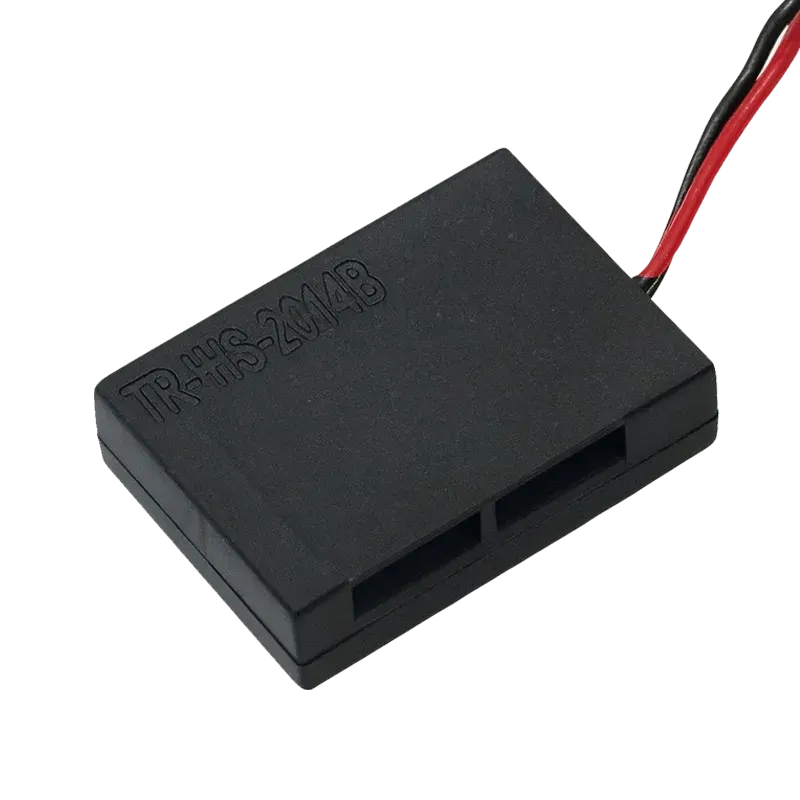

The TR-WS-2014B Ultra-Thin Cavity Speaker (also known as HC2014B) is a compact, high-efficiency micro speaker module engineered for applications requiring reliable voice broadcast and audio output in extremely tight spaces. Featuring an integrated acoustic cavity enclosure with side-emitting sound output, this miniature speaker maximizes volume and acoustic clarity while maintaining a low-profile thickness of just 4.5mm.
Operating at a standard 8Ω nominal impedance with 1.0W rated input power (1.5W max power), the speaker provides strong mid and high-frequency sound reproduction across a wide frequency range (F_0 - 20kHz). Its enclosed cavity design delivers significantly better resonance, lower distortion, and enhanced audio projection compared to raw, un-enclosed micro speaker transducers.
This ultra-thin cavity speaker is widely used in facial recognition terminals, smart home voice prompt systems, handheld game consoles, laptops, tablets, and IoT telemetry devices. It easily interfaces with Class-D audio amplifier modules (such as PAM8403, MAX98357A, or LM386) and microcontrollers like Arduino, ESP32, and Raspberry Pi.
| Compact Dimensions | Micro 20mm × 14mm × 4.5mm cavity enclosure |
|---|---|
| Power Handling | Rated 1.0W power (1.5W maximum peak) |
| Nominal Impedance | 8Ω ± 10% |
| High Sensitivity | Output sensitivity of 94.5 ± 2 dB for clear voice transmission |
| Frequency Response | F_0 to 20kHz with a lowest resonance frequency of 900Hz |
| Side-Emitting Cavity Design | Built-in acoustic box for enhanced clarity and sound directionality |
| Operating Temperature Range | -20°C to +75°C |
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi projects.
Can I buy the TR-WS-2014B Ultra-Thin Cavity Speaker in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
