The 2 Pin 5.08mm Pitch Screw Terminal - 5 Pieces Pack is a set of high-quality through-hole printed circuit board (PCB) terminal blocks designed for secure, detachable wire-to-board electrical… AC 300V · 16A DC / AC.

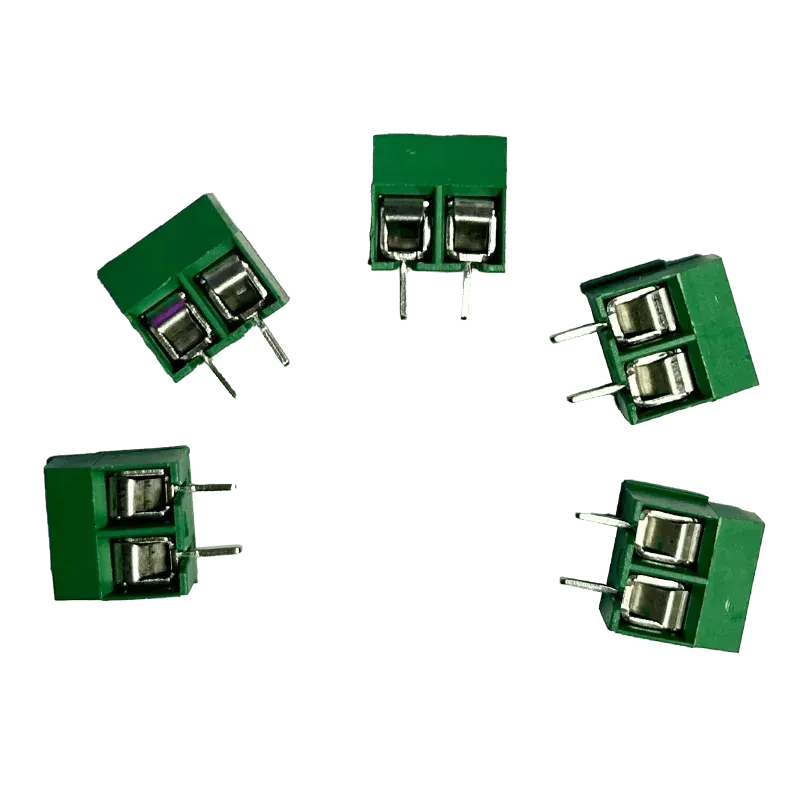

The 2 Pin 5.08mm Pitch Screw Terminal - 5 Pieces Pack is a set of high-quality through-hole printed circuit board (PCB) terminal blocks designed for secure, detachable wire-to-board electrical connections. Featuring a standard 5.08mm (0.2 inch) pitch pin spacing, these terminal blocks fit seamlessly into standard breadboards, perfboards, stripboards, and custom PCB layouts. Each connector incorporates a robust screw-clamp mechanism capable of accommodating wire gauges from 24 AWG up to 12 AWG. Housed in a flame-retardant thermoplastic body with high-conductivity brass contacts, they feature interlocking side slots that allow multiple 2-pin blocks to be slid together to create 4-pin, 6-pin, or larger custom terminal configurations. These connectors are essential for connecting high-current power supplies, DC motor outputs, relay modules, external sensors, and battery inputs to microcontrollers like Arduino, ESP32, Raspberry Pi, PIC, AVR, and custom electronic projects without soldering wires directly to the board.
| Connector Type | Screw Terminal Block (Wire-to-Board) |
|---|---|
| Pitch / Pin Spacing | 5.08mm (0.2 inch) |
| Pin Count | 2 Pins per Connector |
| Package Quantity | Pack of 5 Pieces |
| Wire Gauge Compatibility | 24 AWG – 12 AWG |
| Rated Voltage | AC 300V |
| Rated Current | 16A DC / AC |
| Terminal Type | Through-Hole DIP Pins |
| Contact Material | High-conductivity brass with tin plating |
| Housing Material | Flame-retardant PBT/PA66 plastic |
What is the operating voltage?
AC 300V.
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi projects.
Can I buy the 2 Pin 5.08mm Pitch Screw Terminal - 5 Pieces Pack in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
