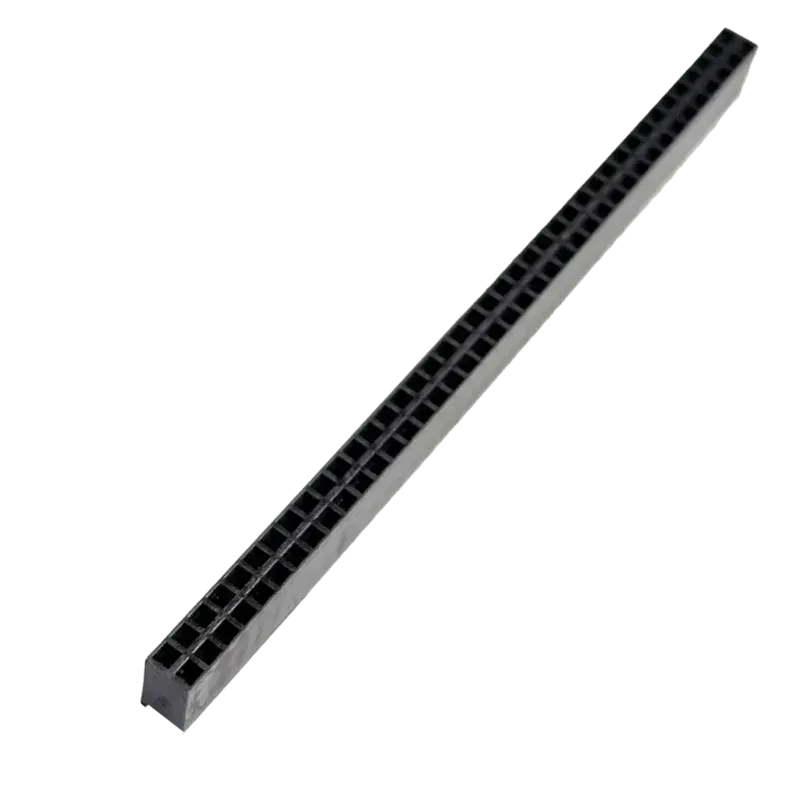

The 2x40 Pin 2.54mm Pitch Female Berg Strip - Break Away Header - Straight is a versatile dual-row female connector featuring 80 contacts (2 rows of 40 pins) spaced at the industry-standard 2.54mm… 3A AC / DC.
The 2x40 Pin 2.54mm Pitch Female Berg Strip - Break Away Header - Straight is a versatile dual-row female connector featuring 80 contacts (2 rows of 40 pins) spaced at the industry-standard 2.54mm (0.1 inch) pitch. Designed for secure through-hole PCB mounting, this break-away strip allows custom pin counts to be easily trimmed or snapped off to fit specific project requirements.
Constructed with high-quality copper alloy contacts and durable insulating plastic, this header ensures reliable conductivity and smooth insertion for standard male header pins. Its dual-row configuration makes it ideal as a extension header for Raspberry Pi GPIO pins, custom shield development, and board-to-board interconnects.
This female berg strip is widely used for connecting display modules, microcontroller boards, sensor shields, and custom PCBs. It is fully compatible with Arduino, ESP32, Raspberry Pi, PIC, AVR, breadboards, perfboards, and prototyping setups.
| Connector Type | Dual-Row Female Berg Strip Header |
|---|---|
| Pin Count | 80 Pins total (2x40 Grid) |
| Pitch / Pin Spacing | 2.54mm (0.1 inch) |
| Orientation | Straight (180° Vertical Through-Hole) |
| Mounting Type | Through-Hole DIP |
| Contact Material | Phosphor Bronze / Brass with Tin Plating |
| Insulator Material | High-temperature Thermoplastic (UL94V-0) |
| Current Rating | 3A AC / DC |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, Raspberry Pi, STM32 projects.
Can I buy the 2x40 Pin 2.54mm Pitch Female Berg Strip - Break Away Header - Straight in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
