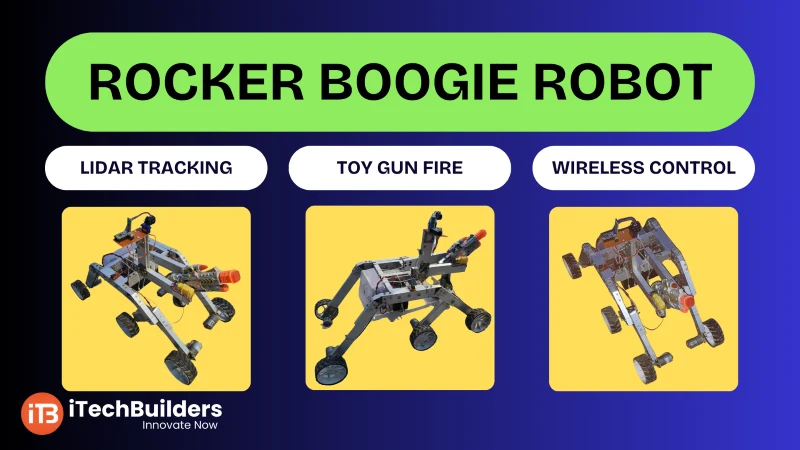

ROCKER BOOGIE ROBOT WITH LIDAR TRACKING AND TOY GUN

The Rocker Boogie Robotic Vehicle with LIDAR sensing and a toy gun mechanism is an advanced robotics project that blends mechanical design, IoT, and automation. It is ideal for students, researchers, and hobbyists who want to learn about terrain mobility, obstacle detection, and actuation control. With a rugged design and intelligent sensing, this project is a stepping stone toward exploring real-world robotics applications.

“Rocker Boogie Robots demonstrate terrain adaptability with LIDAR for smart navigation — combining mechanics, sensors, and control in one platform.”

Why Build a Rocker Boogie Robot?

Inspired by NASA’s Mars Rovers for terrain navigation
Learn mechanical design and suspension systems
Integrates LIDAR for obstacle detection and mapping
Includes toy gun actuator for fun mechatronics add-on
Great for robotics competitions and research projects

Key Features of the Project

Rocker-Bogie suspension for stability on rough terrain
LIDAR sensor for distance measurement and mapping
DC/Servo motors for wheel drive and gun control
ESP32/Arduino-based control with wireless operation
Expandable for AI, vision, and IoT applications

Hardware & Connections

The Rocker Boogie Robot integrates sensors, motors, and actuators. Below are simplified beginner connections:

Connections Overview

LIDAR Sensor ? ESP32 (UART/I2C pins)
DC Motors ? Motor Driver (L298N) ? ESP32 PWM pins
Servo Motor (Toy Gun) ? GPIO pin
Power Supply: 12V battery for motors, 5V for ESP32
Wireless Control via Wi-Fi (Mobile/Web App)

Code Example (ESP32):

// Rocker Boogie Robot Basic Control
#include
Servo gunServo;

int motor1 = 16;   // Motor driver input
int motor2 = 17;
int gunPin = 5;    // Toy gun servo pin

void setup() {
  pinMode(motor1, OUTPUT);
  pinMode(motor2, OUTPUT);
  gunServo.attach(gunPin);
}

void loop() {
  // Move forward
  digitalWrite(motor1, HIGH);
  digitalWrite(motor2, LOW);

  delay(2000);

  // Stop
  digitalWrite(motor1, LOW);
  digitalWrite(motor2, LOW);

  // Fire toy gun
  gunServo.write(90);  // Aim
  delay(500);
  gunServo.write(0);   // Reset
  delay(1000);
}

Learning Outcomes

Understand rocker-bogie suspension and robotics design
Learn motor control using drivers and PWM
Integrate LIDAR for real-time obstacle sensing
Explore servo actuation for fun add-ons (toy gun)
Build wireless IoT control with ESP32

Next Steps & Applications

After building this robot, learners can explore SLAM (Simultaneous Localization & Mapping), AI-driven navigation, and autonomous missions. The project serves as a foundation for space robotics, defense robotics, and advanced IoT solutions.
