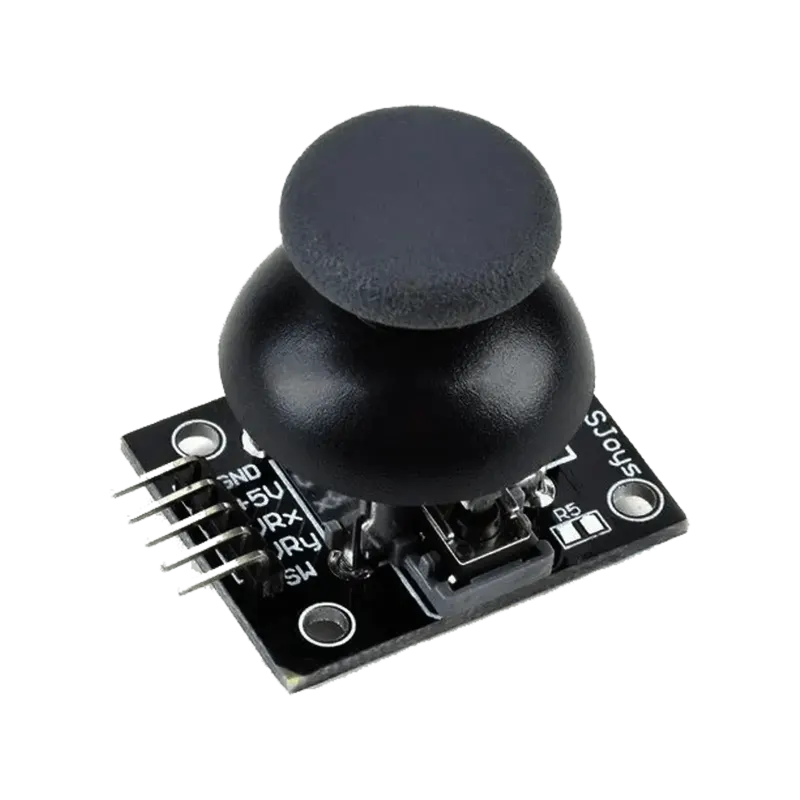

The Dual Axis XY Joystick Module (KY-023 type) has two potentiometers for X and Y movement and a push button when pressed down. It gives analog values for both axes, so you can control robots, servos, games and cameras with Arduino.
| Axes | 2 (X and Y) analog |
|---|---|
| Push button | Yes (SW, press down) |
| Supply voltage | 3.3V – 5V |
| Output | 2 analog + 1 digital |
| Pins | GND, +5V, VRx, VRy, SW |
What is the operating voltage?
3.3V – 5V.
What values does it give?
About 0–1023 on each axis with Arduino, around 512 at the centre.
Can I buy the Dual Axis XY Joystick Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
