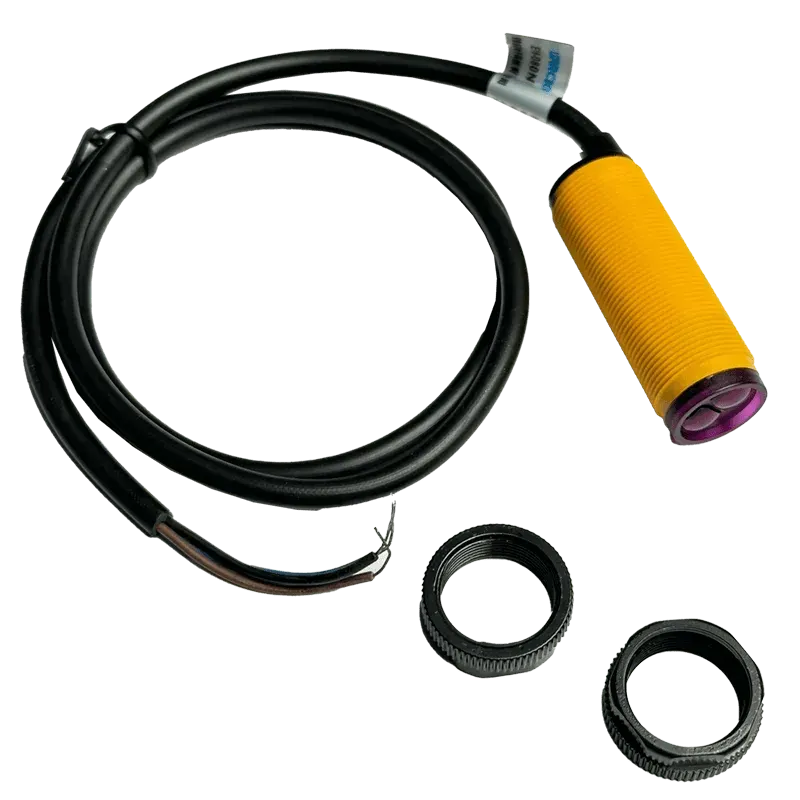

The E18-D80NK is an adjustable infrared proximity switch with a range of up to 80 cm in an M18 threaded housing.
The E18-D80NK is an adjustable infrared proximity switch with a range of up to 80 cm in an M18 threaded housing. It gives an NPN digital output and is far less affected by ambient light than small IR modules, making it ideal for industrial counting, conveyor and robotics projects.
| Model | E18-D80NK |
|---|---|
| Detection range | 3 – 80 cm (adjustable) |
| Supply voltage | 5V DC |
| Output | NPN, normally open (LOW on detection) |
| Housing | M18 threaded, with indicator LED |
| Wires | Brown +5V, Blue GND, Black output |
What is the operating voltage?
5V DC.
Does it need a pull-up resistor?
Yes, use a 10k pull-up (or INPUT_PULLUP) on the output wire.
Can I buy the IR High Range NPN Optical Proximity Sensor in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
