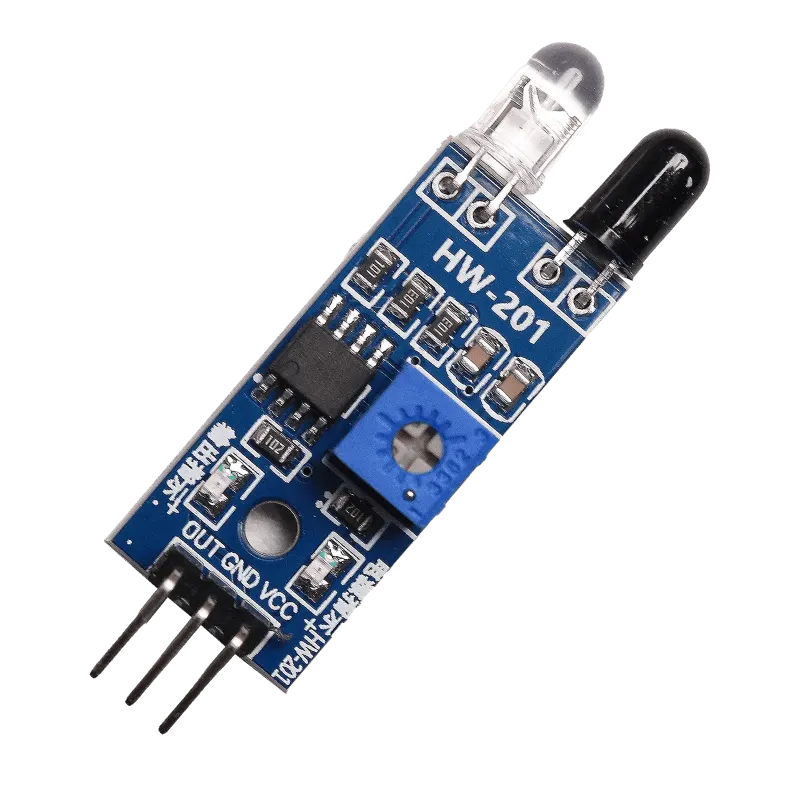

The Infrared (IR) Proximity Sensor Module has an IR LED and IR receiver that detect objects in front of the sensor. The LM393 comparator gives a clean digital LOW when an obstacle is detected, and the range is set by a potentiometer. It is the standard sensor for obstacle-avoiding and line-follower robots.
| Detection range | approx. 2 – 30 cm (adjustable) |
|---|---|
| Comparator | LM393 |
| Supply voltage | 3.3V – 5V |
| Output | Digital (LOW on detection) |
| Detection angle | approx. 35° |
What is the operating voltage?
3.3V – 5V.
Does sunlight affect it?
Yes, strong sunlight can reduce range; it works best indoors.
Can I buy the Infrared Proximity Sensor Module in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
