Description

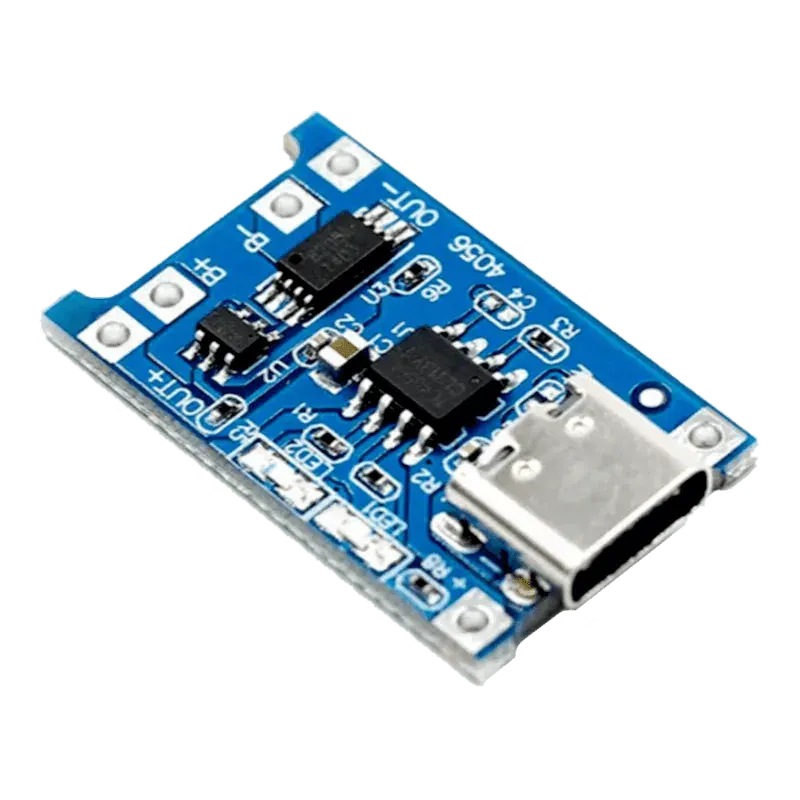

The TP4056 Type C 1A Li-ion lithium Battery Charging Module With Current Protection is an all-in-one charging and battery protection solution designed for single-cell 3.7V lithium-ion or lithium-polymer (LiPo) batteries. Built around the industry-standard TP4056 linear charger IC, this module safely manages battery charging using a Constant-Current/Constant-Voltage (CC/CV) charging algorithm.
Equipped with an onboard DW01A protection IC and dual 8205A MOSFETs, the board provides comprehensive protection against over-charge, over-discharge, short circuits, and over-current conditions when load circuits are wired to the OUT+ and OUT- terminals. Power can be conveniently provided via its modern Type-C USB port or external solder pads (IN+ and IN-).
This protection-enabled version is widely used in custom power banks, wireless IoT nodes, battery shields, and portable hardware projects. It connects easily via standard through-hole soldering pads (B+/B- for battery, OUT+/OUT- for system load) and is fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi, and general DIY electronics.
| Controller IC | TP4056 Standalone Linear Charger IC + DW01A Protection IC |
|---|---|
| Input Voltage Range | 4.5V to 5.5V DC (Type-C USB port or IN+ / IN- pads) |
| Full Charge Cut-off Voltage | 4.2V DC (Fixed, ±1% accuracy) |
| Default Charging Current | 1000mA (1A default, adjustable via Rprog resistor) |
| Charge Algorithm | Constant-Current / Constant-Voltage (CC/CV) |
| Integrated Protection | Over-charge, over-discharge (≈ 2.4V-2.5V cut-off), and over-current/short-circuit protection (≈ 3A) |
| Status Indicators | Onboard dual LEDs (Red: Charging, Blue/Green: Fully Charged) |
| Connections | Type-C USB interface + soldering pads (IN±, B±, OUT±) |
What is the operating voltage?
4.5V to 5.5V DC (Type-C USB port or IN+ / IN- pads).
Is it compatible with Arduino and ESP32?
Yes. It works with Arduino, ESP32, ESP8266, Raspberry Pi projects.
Can I buy the TP4056 Type C 1A Li-ion lithium Battery Charging Module With Current Protection in Kanpur?
Yes – buy online with delivery across India, or pick it up from the iTechBuilders store, Damodar Nagar, Kanpur.
