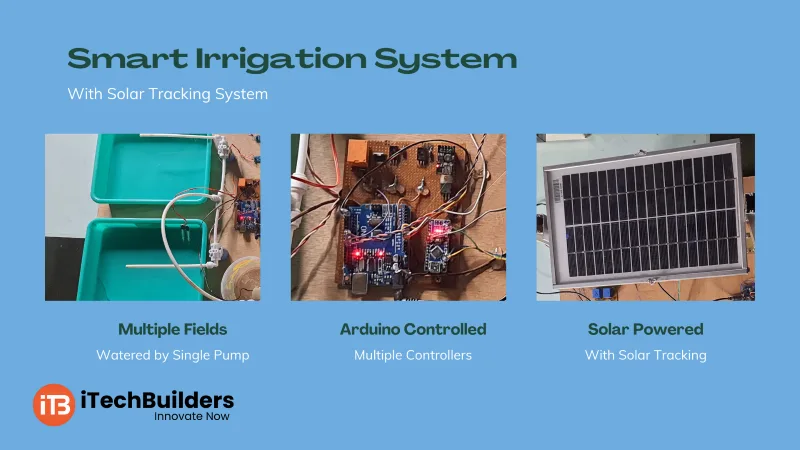

Smart Irrigation System

The Smart Irrigation System with Solar Tracking is an innovative IoT + renewable energy project designed for students, farmers, and automation enthusiasts. It automates water supply using soil moisture sensors and powers itself using a solar panel with a dual-axis tracking system. This project helps learners explore IoT, embedded systems, and green energy solutions.

“Smart irrigation saves water and ensures efficient farming, while solar tracking maximizes clean energy output.”

Why Build Smart Irrigation with Solar Tracking?

Saves water by automating irrigation
Eco-friendly with renewable solar energy
Dual-axis solar tracking increases energy efficiency
IoT-enabled (optional) for remote monitoring
Practical application in agriculture and smart cities

Key Features of the Project

Microcontroller: ESP32 / Arduino Uno
Soil Moisture Sensor for irrigation control
Solar Panel with dual-axis servo motors
Motor driver to control pump and tracking system
Optional IoT Dashboard for monitoring data

System Basics

The Smart Irrigation System checks soil moisture and automatically waters plants when the soil is dry. The Solar Tracking System uses LDR sensors to rotate the solar panel toward the sun, improving energy capture.

Main Components

Soil Moisture Sensor
Solar Panel + LDR sensors
Servo Motors (for tracking)
Relay Module for water pump
ESP32/Arduino + Motor Driver

Quick Specs

Soil Moisture Range: 0–1023 (analog)
Servo Angle: 0–180°
Pump Voltage: 5V–12V DC
Operating Voltage: 3.3V/5V
Wi-Fi enabled (if using ESP32)

First Project: Smart Irrigation + Solar Tracking

This project waters the plants automatically when the soil is dry and tracks the sun using servo motors.

Connections:

Soil Sensor ? A0 (Analog pin)
Relay Module ? GPIO 5 (Pump control)
Servo Motors ? GPIO 12, 13
LDR Sensors ? A1, A2

Code:

// Smart Irrigation + Solar Tracking
#include <Servo.h>

int soilPin = A0;
int pumpPin = 5;
Servo servoX, servoY;
int ldr1 = A1, ldr2 = A2;

void setup() {
  pinMode(pumpPin, OUTPUT);
  servoX.attach(12);
  servoY.attach(13);
  Serial.begin(9600);
}

void loop() {
  int soil = analogRead(soilPin);
  int l1 = analogRead(ldr1);
  int l2 = analogRead(ldr2);

  // Irrigation control
  if (soil < 400) {  // Dry soil
    digitalWrite(pumpPin, HIGH);
  } else {
    digitalWrite(pumpPin, LOW);
  }

  // Solar tracking
  if (l1 > l2) {
    servoX.write(servoX.read() + 1);
  } else {
    servoX.write(servoX.read() - 1);
  }

  delay(500);
}

Learning Outcomes:

Understand soil moisture sensor interfacing
Control water pumps using relay modules
Implement solar tracking with servo motors
Learn basics of IoT and renewable energy

Next Steps & Applications

After this project, students can expand into IoT-based remote monitoring, automated greenhouses, and AI-based smart farming. It is a stepping stone to building sustainable agriculture solutions.
